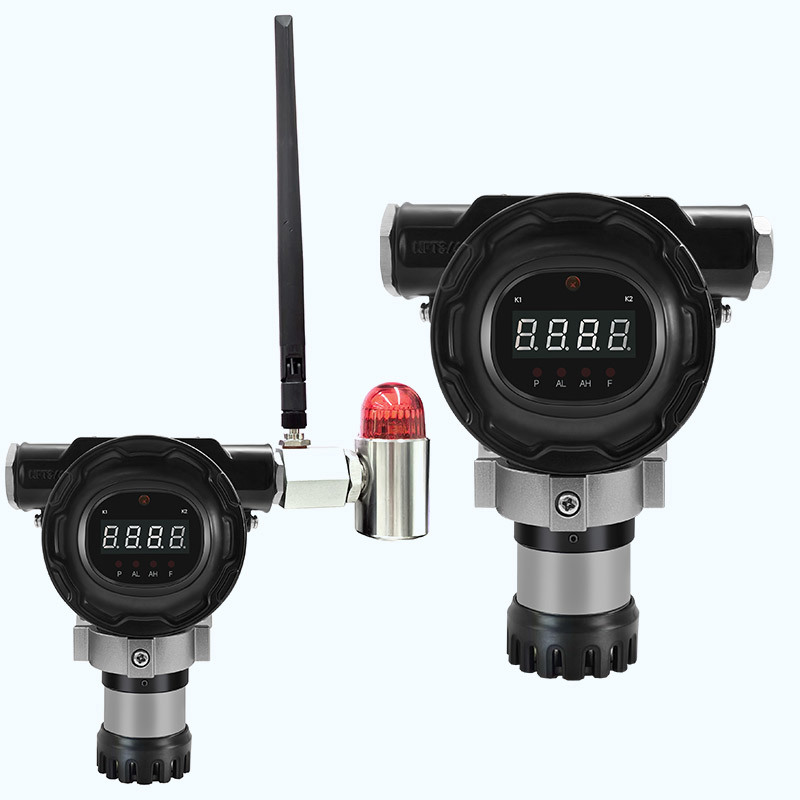

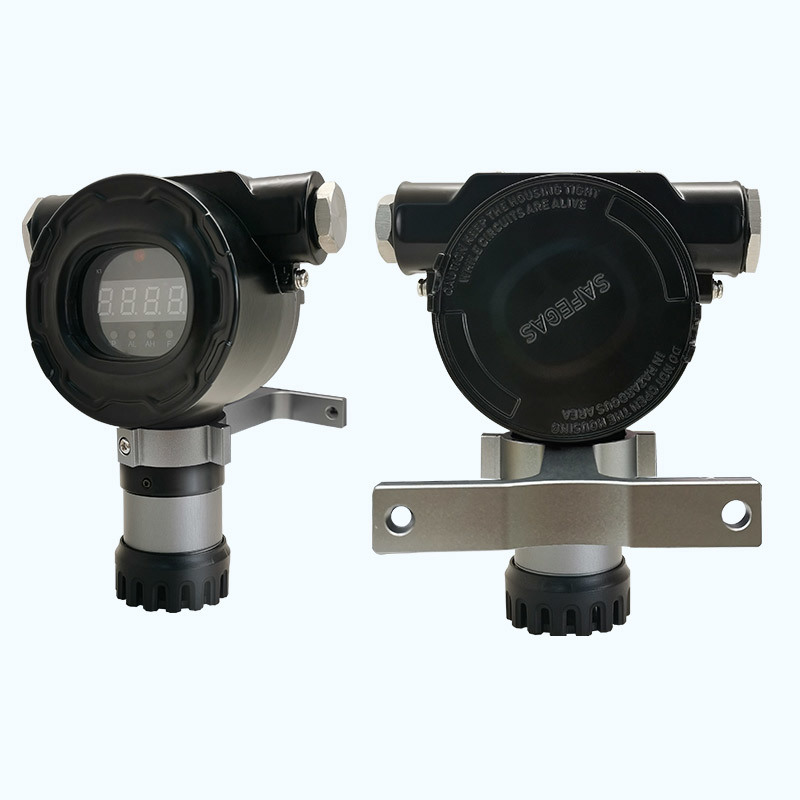

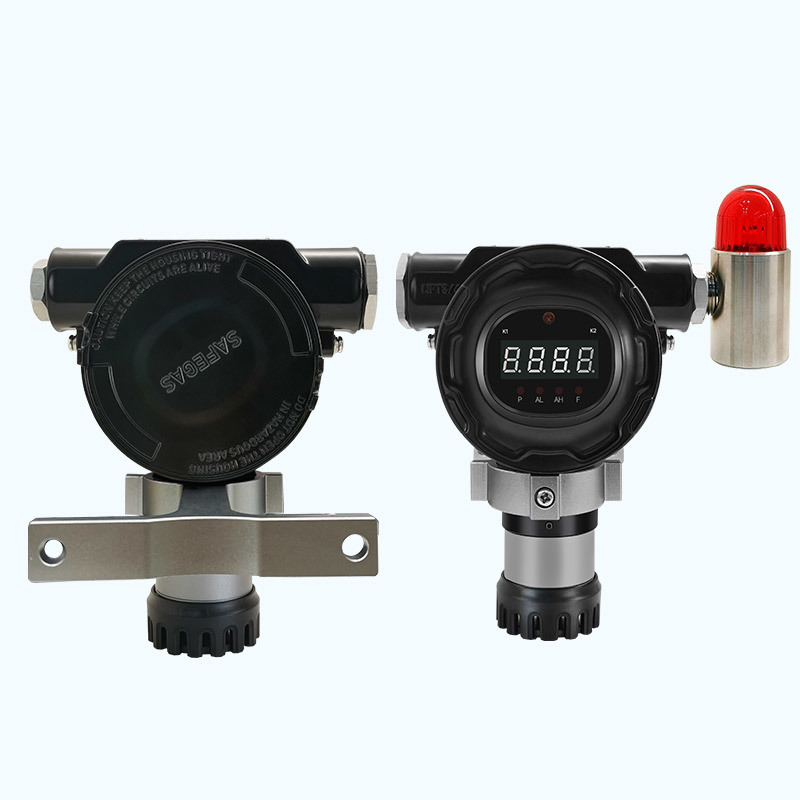

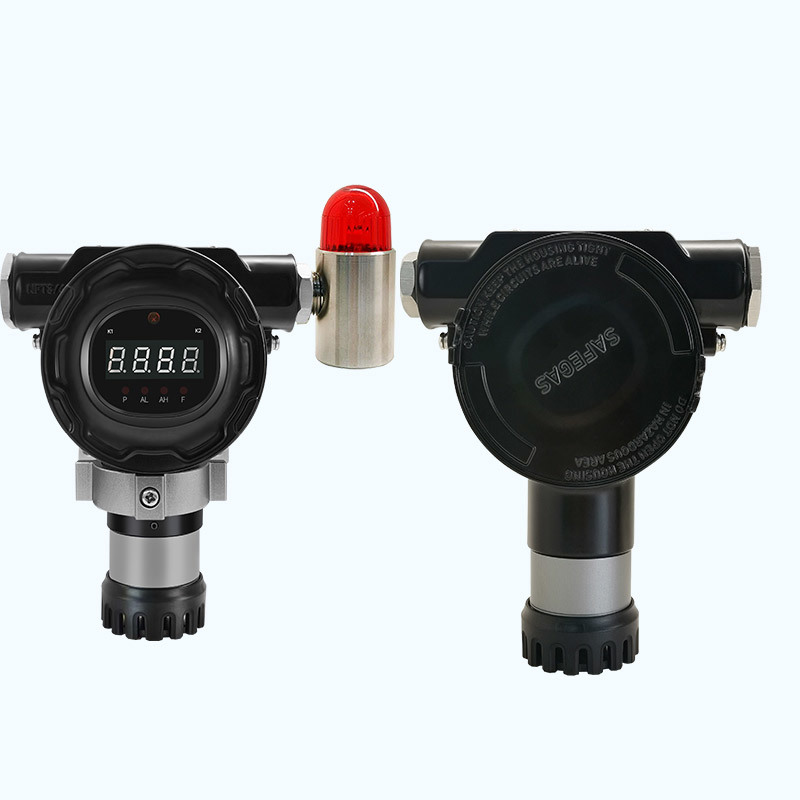

SG100 Fixed Oxygen Gas Detector with 0–30%VOL Range IP66/IP68 Protection and 4-20mA/RS485/Relay Output

A cost-effective, IECEx/ATEX certified fixed gas detector for continuous monitoring of oxygen (O₂) from 0–30%VOL. Features IP66/IP68 water/dust resistance, intelligent plug-and-play sensor module, 4-20mA, RS485 Modbus, and optional HART output. Supports magnetic wand and remote control for easy configuration. Optional LoRa/4G wireless and 3 relays for external device control (horns, fans, alarm lights).

The SG100 series is a cost-effective fixed gas detector designed for continuous 24/7 monitoring of toxic gases, oxygen, flammable gases, and VOC. Taking oxygen (O₂) as an example, it uses an electrochemical sensor to measure concentrations from 0–30%VOL with high accuracy and stability.

The detector is IECEx and ATEX certified with explosion-proof grade Ex db IIC T6 Gb and Ex db ia IIC T6 Gb, making it suitable for hazardous areas. It features IP66/IP68 water and dust resistance, ensuring reliable operation in harsh environments.

The SG100 offers multiple output options: 3-wire 4-20mA analog, RS485 Modbus, and optional HART communication, making it compatible with most control systems (PLC, DCS, SCADA). Optional 3 relays (low/high/fault alarm) can directly control external devices such as horns, strobe lights, and exhaust fans. Optional wireless modules (LoRa, 4G) enable remote data access via PC, laptop, or mobile phone.

A key feature is the intelligent plug-and-play sensor module – calibration can be performed using Safegas PC software, and the module can be replaced easily without disassembling the whole unit. The detector comes with a standard mounting bracket and splash guard, weighs only 1.0 kg, and is easy to install by one person.

Oxygen is essential for life, but both oxygen deficiency and oxygen enrichment pose serious risks in industrial environments.

• Confined spaces – Tanks, pipelines, sewers, silos, vaults (oxygen displaced by other gases)
• Inert gas purging – Nitrogen, argon, or CO₂ used to purge vessels can displace oxygen
• Chemical reactions – Oxidation processes consume oxygen
• Leaks from oxygen cylinders or lines – Can cause localized oxygen enrichment
• Fermentation and biological processes – consume oxygen and produce CO₂ or methane
• Welding and cutting – Can consume oxygen in enclosed areas

• Confined space entry – Pre-entry and continuous monitoring in tanks, manholes, and ductwork
• Oil & gas refineries – Process areas, storage tanks, and pipeline pigging stations
• Chemical plants – Reactors, mixing vessels, and storage areas
• Wastewater treatment plants – Digesters, headworks, and lift stations
• Mining – Underground mines, tunnels, and ore pass chutes
• Food & beverage – Nitrogen-purged packaging lines, cold storage, and fermentation rooms
• Pharmaceutical manufacturing – Cleanrooms, incubators, and biological safety cabinets
• Laboratories – Fume hoods, glove boxes, and animal housing areas
• Power generation – Boiler rooms, turbine enclosures, and coal handling areas
• Marine & shipbuilding – Cargo holds, ballast tanks, and engine rooms

• Explosion-proof certified – IECEx and ATEX Ex db IIC T6 Gb / Ex db ia IIC T6 Gb for hazardous areas (Zone 1, Zone 2).
• IP66 / IP68 protection – Waterproof and dustproof for outdoor and wash-down environments.
• Intelligent plug-and-play sensor module – Easy replacement and calibration via Safegas PC software without disassembling the whole unit.
• Multiple output options – 3-wire 4-20mA, RS485 Modbus, optional HART – compatible with PLC, DCS, SCADA.
• Relay outputs (optional) – 3 relays (low/high/fault) to control external devices like horns, strobe lights, fans, and solenoid valves.
• Wireless connectivity (optional) – LoRa or 4G modules for remote data viewing on PC, laptop, or mobile phone.
• Flexible operation – Configure via magnetic wand (non-intrusive) or optional remote control.
• Easy installation – Lightweight (1.0 kg) with standard mounting bracket; one-person installation.
• Splash guard included – Protects sensor during outdoor installation or in water-splash environments.
• Robust construction – Die-cast aluminum housing (SS316 optional for corrosive environments).

The SG100 fixed oxygen detector is widely used to prevent oxygen deficiency and enrichment hazards in the following environments:

1. Confined Space Entry

   Tanks, silos, pipelines, sewers, manholes, and vaults

   Continuous monitoring before and during personnel entry

   Alarm when O₂ falls below 19.5% or rises above 23.5% VOL

2. Oil & Gas Refineries and Petrochemical Plants

   Process areas, storage tanks, catalyst handling, pipeline pigging stations

   Detect oxygen displacement by hydrocarbons or inert gases

   Prevent fire/explosion from oxygen enrichment

3. Chemical Manufacturing

   Reactors, mixing vessels, solvent storage, and distillation columns

   Monitor oxygen levels where inert gas purging is used

   Protect workers and prevent oxidation reactions

4. Wastewater Treatment Plants

   Digesters, headworks, lift stations, sludge holding tanks

   Methane and CO₂ produced during digestion displace oxygen

   Protect workers during inspection and maintenance

5. Underground Mining & Tunneling

   Coal mines, hard rock mines, tunnel boring operations

   Oxygen consumed by diesel equipment, blasting, or oxidation of ores

   Continuous monitoring along ventilation airways and working faces

6. Food & Beverage Industry

   Nitrogen-purged packaging lines, cold storage rooms, fermentation vessels

   Detect oxygen deficiency in enclosed spaces

   Ensure worker safety in breweries, dairies, and meat processing plants

Shenzhen YuanTe Technology Co., Ltd. (brand: Safegas) was established in 2010 and specializes in the R&D, manufacturing, and sales of gas detection equipment and integrated systems. With over 16 years of industry expertise, the company serves sectors including oil & gas, chemicals, environmental protection, electronics, municipal engineering, agriculture, and household appliances. Their product portfolio includes portable gas detectors, fixed gas transmitters, gas analyzers, control panels, and calibration accessories. All products are manufactured under ISO9001 and ISO45001 management systems, holding international certifications such as IECEx, ATEX, and EMC. With an annual production capacity of over 80,000 units, YuanTe Technology supplies gas detection solutions to customers worldwide.

• International certifications – IECEx and ATEX Ex db IIC T6 Gb / Ex db ia IIC T6 Gb, IP66/IP68.
• Cost-effective fixed detection – High performance at competitive pricing.
• Plug-and-play sensor module – Easy field replacement and calibration without disassembling the detector.
• Multiple output options – 4-20mA, RS485, HART (optional) – compatible with all major control systems.
• Wireless ready – Optional LoRa/4G for remote monitoring in hard-to-wire locations.
• Relay control – Up to 3 relays for direct activation of external alarms and ventilation.
• Flexible configuration – Magnetic wand or remote control operation for safe use in hazardous areas.
• Rugged construction – IP66/IP68, die-cast aluminum housing, splash guard included.
• Lightweight and easy to install – Only 1.0 kg, standard mounting bracket, one-person installation.
• Global support – 24/7 customer service and fast delivery.

Q1: What gas does SG100 detect?

A: It detects Oxygen (O2) with range 0–30%VOL.

Q2: What is the detection principle?

A: Electrochemical sensor, high accuracy and long service life.

Q3: What certifications does it have?

A: IECEx & ATEX explosion-proof certified.

Q4: What is the protection grade?

A: IP66/IP68 waterproof and dustproof.

Q5: What signals does it support?

A: Standard 4-20mA + RS485; optional HART.

Q6: Does it support wireless?

A: Optional Lora / 4G for remote data monitoring.

Q7: Does it have relay output?

A: Optional 3 relays for alarm, ventilation, linkage control.

Q8: How to operate and calibrate?

A: Support magnetic wand & infrared remote control, no need to open cover.

Q9: Is the sensor easy to replace?

A: Plug-and-play module, hot-swappable, maintenance-friendly.

Q10: What is the working temperature?

A: -20℃ ~ 50℃ for electrochemical O2 sensor.
