| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | Safegas |
| 인증: | ATEX/EX |
| 모델 번호: | Sky8000 |
| 최소 주문 수량: | 1 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 판지 상자 |
| 배달 시간: | 7 근무일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 50이지 부분 / 일 |
| 펌프 유속: | 0–500 cc/min (조절 가능) | 표시하다: | 3.5인치 HD LCD, 320×480 해상도 |
|---|---|---|---|
| 작동시간: | >32시간(단일 가스) / >24시간(6개 가스) | 작동 온도: | -40°C ~ +70°C |
| 작동 습도: | 0~95% RH(비응결) | IP 등급: | IP65 |
| 언어: | 영어(기타 사용자 정의 가능) | 치수(H×W×D)260 × 230 × 120mm: | 260×230×120mm |

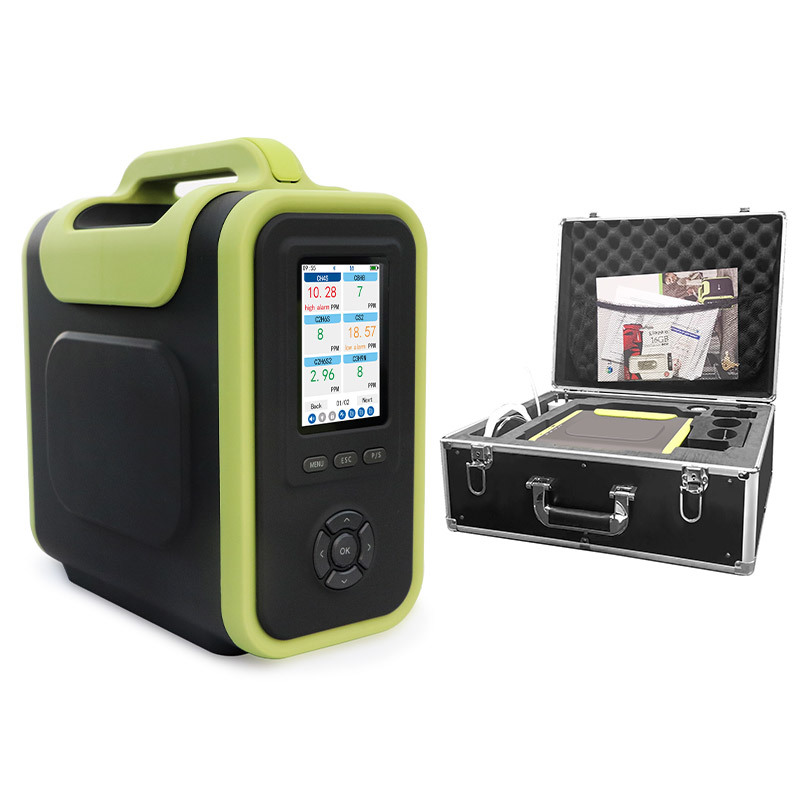

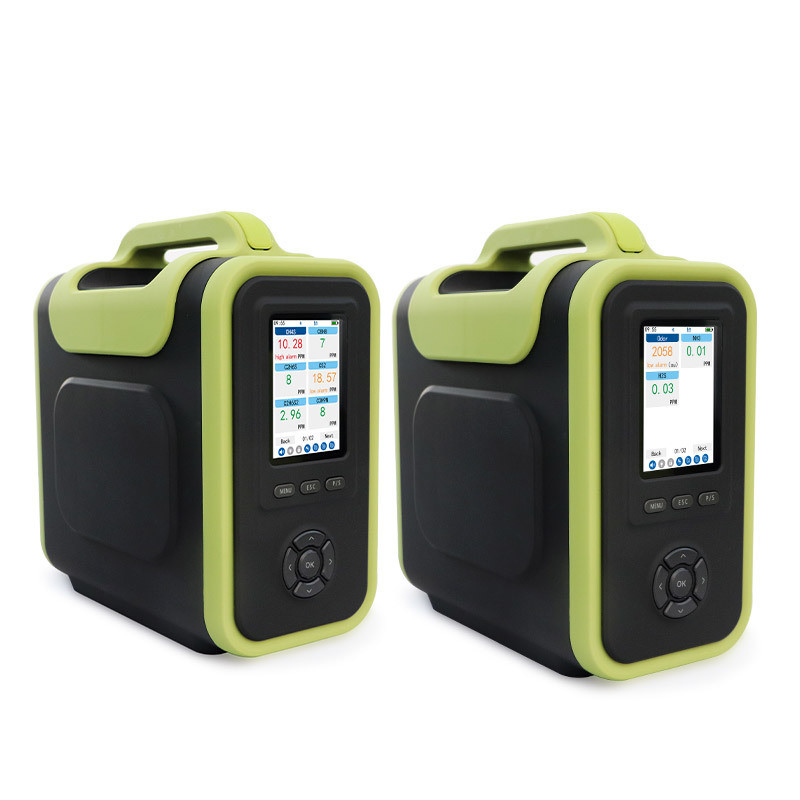

Advanced multi-gas analyzer designed for comprehensive vehicle exhaust analysis with precision measurement capabilities.

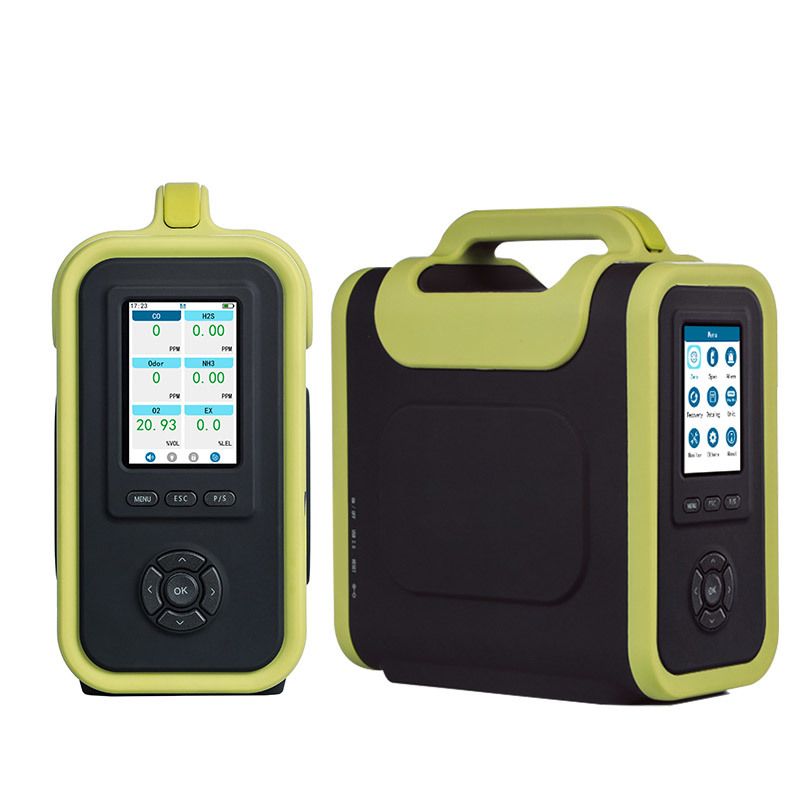

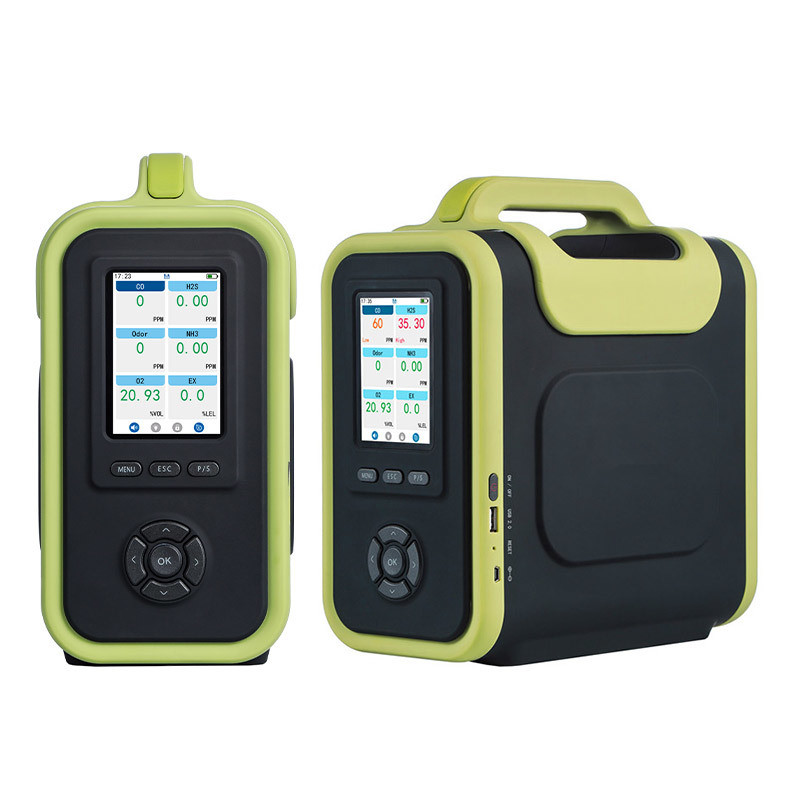

The SKY8000 series is a high-performance portable gas analyzer designed for scientific research, industrial facilities and complex working environments. It can detect up to 18 gases simultaneously by integrating multiple detection principles: electrochemical, infrared (NDIR), catalytic, PID, semiconductor, etc.
For vehicle exhaust emission monitoring, the SKY8000 can be configured with six key pollutants:
| Gas | Principle | Measuring Range | Resolution |
|---|---|---|---|
| CO | Electrochemical | 0 – 2000 ppm | 1 ppm |
| CO₂ | Infrared (NDIR) | 0 – 20% VOL | 0.1% VOL |
| NO | Electrochemical | 0 – 1000 ppm | 1 ppm |
| NO₂ | Electrochemical | 0 – 200 ppm | 0.1 ppm |
| SO₂ | Electrochemical | 0 – 500 ppm | 1 ppm |
| H₂S | Electrochemical | 0 – 100 ppm | 0.1 ppm |
The analyzer features a built-in pump (0–500 cc/min adjustable) for active gas sampling, ensuring fast response. Each module is equipped with multi-layer filtering (water, vapour, dust, oil) to protect sensors and improve reliability.
A 3.5-inch high-definition LCD screen (320×480 resolution) displays real-time data, gas formulas, concentration curves, battery status, pump condition and wireless connection status. Multiple display modes are switchable: single curve, multi-curve, and numerical data.
Data logging is standard with an 8G SD memory card (plus 8G USB drive included). Historical data can be stored automatically with customizable recording intervals. Data can be exported via USB or RS485.
Alarms include buzzer, red LED, on-screen status, fault alarm, pump abnormal alarm and low battery alarm.
The unit is powered by a large-capacity rechargeable lithium battery: 5400mAh/11.1V (with internal printer) or 10000mAh/3.7V (standard version). Operating time exceeds 32 hours for a single gas or 24 hours for six gases.
Built with aviation wear-resistant materials and rated IP65, the SKY8000 is suitable for harsh industrial environments. An optional high-temperature sampling gun allows measurement of gas concentrations up to 1100°C.
Optional features: WiFi, Bluetooth, 4G, LoRa wireless transmission; built-in or external Bluetooth printer; temperature & humidity monitoring.
| Parameter | Value |
|---|---|
| Detecting Gases | CO, CO₂, NO, NO₂, SO₂, H₂S (up to 18 gases total) |
| Sensors | Electrochemical (CO/NO/NO₂/SO₂/H₂S); Infrared (CO₂) |
| Precision | ≤ ±2% F.S. (higher precision customizable) |
| Pump Flow Rate | 0–500 cc/min (adjustable) |
| Display | 3.5″ HD LCD, 320×480 resolution |
| Data Storage | 8G SD card + 8G USB drive; auto recording, interval customizable |
| Alarm | Buzzer, red LED, on-screen; fault, pump abnormal, low battery alarms |
| Data Transmission | USB, RS485; optional LoRa, Bluetooth, 4G, WiFi |
| Print Function | Optional built-in or external Bluetooth printer |
| Battery | 5400mAh/11.1V (printer version) or 10000mAh/3.7V (standard) |
| Operating Time | >32h (single gas) / >24h (6 gases) |
| Charger | Mini-USB; 13V/2A (printer version) or 5V/2A (standard) |
| Operating Temperature | -40°C ~ +70°C (optional high-temp probe up to 1100°C) |
| Operating Humidity | 0–95% RH (non-condensing) |
| IP Grade | IP65 |
| Language | English (others customizable) |
| Wireless Range | LoRa <500m, Bluetooth <10m |
| Dimensions (H×W×D) | 260 × 230 × 120 mm |
| Weight | 3700 g |
Vehicle exhaust emission testing – Gasoline/diesel engine tailpipe analysis (CO, CO₂, NO, NO₂, SO₂, H₂S).
Stationary emission monitoring – Power plants, incinerators, cement kilns, industrial boilers.
Environmental protection & air quality – Urban roadside monitoring, industrial park surveillance.
Petrochemical & chemical industry – Process gas analysis, leak detection.
Research & university laboratories – Combustion studies, catalytic converter efficiency testing.
Wastewater treatment & landfill – Odour and toxic gas monitoring.
1. What is the maximum number of gases the SKY8000 can detect?
Up to 18 gases simultaneously.
2. What is the precision of the analyzer?
≤ ±2% F.S. Higher precision can be customized.
3. How is data stored and exported?
Standard 8G SD memory card and 8G USB drive. Data can be exported via USB or RS485.
4. Does the SKY8000 have an alarm system?
Yes – buzzer, red LED, on-screen alarm status, fault alarm, pump abnormal alarm, and low battery alarm.
5. How long does the battery last?
More than 32 hours for a single gas, and more than 24 hours for six gases.
6. What is the pump flow rate?
Adjustable from 0 to 500 cc/min.
7. Can it measure high-temperature flue gas?
Yes – with an optional high-temperature sampling gun, it can measure gas concentrations up to 1100°C.
8. What wireless communication options are available?
Optional LoRa, Bluetooth, 4G, and WiFi. LoRa range <500m, Bluetooth <10m.
9. Is there a printing function?
Optional built-in printer or external Bluetooth printer; can print text, graphics, barcodes, curves and QR codes.
10. What languages does the interface support?
English as standard; other languages can be customized.
11. What is the protection rating?
IP65 – dust-tight and protected against water jets.
12. What is included in the standard package?
Gas analyzer, built-in pump, Micro-USB cable, charger, multi-layer filters (3 pcs), water trap filter, sampling probe, 1000mm hose, 8G SD card, 8G USB drive, aluminium suitcase, user manual, qualification certificate and warranty card.
| Item | Quantity |
|---|---|
| SKY8000 gas analyzer (with specified sensor configuration) | 1 unit |
| Built-in pump (pre-installed) | 1 set |
| Micro-USB cable | 1 piece |
| Charger (5V/2A or 13V/2A, depends on version) | 1 piece |
| Water, vapour, smoke filter (multi-layer) | 3 pieces |
| Water trap filter | 1 piece |
| Sampling probe | 1 piece |
| 1000mm PTFE sampling hose | 1 piece |
| 8G SD memory card | 1 piece |
| 8G USB flash drive | 1 piece |
| Aluminium carrying suitcase | 1 piece |
| User manual (English) | 1 copy |
| Qualification certificate / Warranty card | 1 copy each |
*Optional accessories: Built-in or external Bluetooth printer, high-temperature sampling gun (up to 1100°C), LoRa/Bluetooth/4G/WiFi module, spare filter kit.*
Shenzhen YuanTe Technology Co., Ltd. (Safegas) – Founded in 2010, a national high-tech enterprise specializing in R&D, production and sales of gas detection equipment and systems. With over 16 years of experience, the company serves oil & gas, chemical, environmental, automotive, municipal and agricultural sectors. Products are ISO9001 & ISO45001 certified, holding IECEx, ATEX and EMC certifications. Annual capacity exceeds 80,000 units. Fast delivery (5-7 working days) and 24/7 after-sales support are available.
