| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | SAFEGAS |
| 인증: | ATEX/EMC/IECEX |
| 모델 번호: | 미세 타 |
| 최소 주문 수량: | 1 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 상자 (22*16*11cm) |
| 배달 시간: | 3 일 |
| 지불 조건: | t/t |
| 공급 능력: | 한 달에 3000 조각 |
| 가스 유형: | CO2, O2 | 샘플링 방식: | 확산 샘플링 |
|---|---|---|---|
| 도킹 스테이션: | 매일 교정 및 범프 테스트를 수행하기위한 선택적 도킹 스테이션 | 배터리: | 충전식 3.7V 리튬 배터리 |
| 무선 전송: | 옵션 Bluetooth 또는 Lora | 근무 시간: | 약 24 시간 |
| 충전 시간: | 6 시간 미만 | 인증: | ATEX, CN, IECEx |
| 보호 등급: | IP66/IP68 | 무게: | 240g |
| 데이터 레코드: | 1000 세트 | 이벤트 기록: | 100 세트 |
| 강조하다: | CO NH3 H2S 3 in 1 Multi Gas Detector,24 Hours Working Hours Gas Detector,1000 Sets Data Record Multi Gas Detector |
||
| Feature | Description |
|---|---|
| Sampling method | Diffusion suction |
| Gas type | CO2, O2 |
| Measure range | CO2 0-2000PPM, O2 0-21%VOL |
| Resolution | CO2 1PPM, O2 0.1%VOL |
| Response time | ≤60S (T90) |
| Precision | ≤±5%FS or ±10% (depends on the specific sensor) |
| Language | Chinese/English |
| Automatically test and calibrate after power-on | Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system |
| Display | Segment code LCD display |
| Calibration platform | Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional) |
| Data record | 1000 sets data records and 100 sets events records |
| Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red bar, as well as on-screen alarm status indication, alarm lock; Diagnostic alarms and battery undervoltage alarms, man down alarms, all sensor alarm value is settable. |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2300mA |
| Working hours | Standby time 18h, charging time <6h |
| Wireless transmission | Bluetooth transmission function (optional), Lora transmission function (optional) |
| Explosion-proof grade | IECEx: Ex ia IIC T4 Ga, Ex ia I Ma ATEX: II 1G Ex ia IIC T4 Ga, Ex ia I Ma (EU regulations): 2004/108/EC(EMC), 94/9/EC(ATEX), CE |
| Protection grade | IP66/IP68 |
| Working temperature | -20°C~55°C |
| Humidity | 0-95%RH (non-condensing) |
| Environmental pressure | 86～106Kpa |
| Size | 113*60*32mm (length * width * height) |
| Weight | 200g (with lithium battery) |

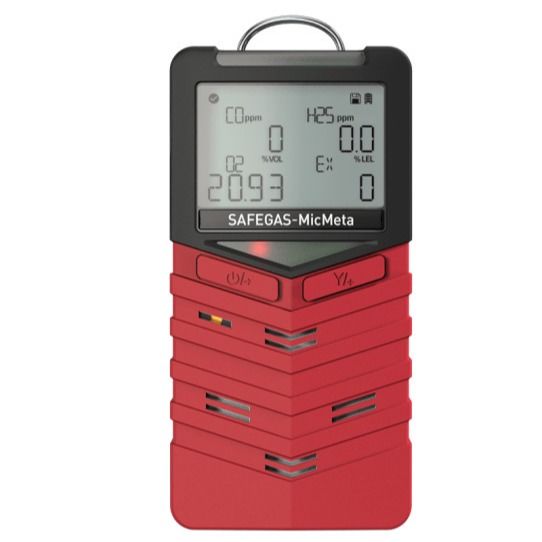

MicMeta is a multi-gas detector with IP66/IP68 protection level. Under normal circumstances, Micmeta can detect 1-4 gases simultaneously. In the case of two conventional range gases CO and H2S, if the gases contain CO and H2S, then Micmeta can detect total 5 gases.
Micmeta has obtained explosion-proof certifications from IECEX, ATEX, and China Explosion-proof, with an explosion-proof level of Ex ia IICT4 Ga/Ex ia I Ma, and can be used in both Zone 0 and Zone 1.
Micmeta features an LCD screen with Chinese/English language support, gas unit switching capability, two-level sound and light alarm with user-settable alarm points, and optional docking station for easy bump test, calibration, configuration and data recording.
Micmeta can detect 1-5 gases, including but not limited to:
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With "gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.
Our products contain portable types, fixed types and controller panels:
Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality, which are comparable to international brands like Honeywell, MSA, RAE, but with competitive pricing.
Huawei, Coca-Cola, Samsung, Nestlé and more.
