Biogas Gas Detector High Concentration Gas Detection O2, H2S, CO2, CH4Detector
Product Overview

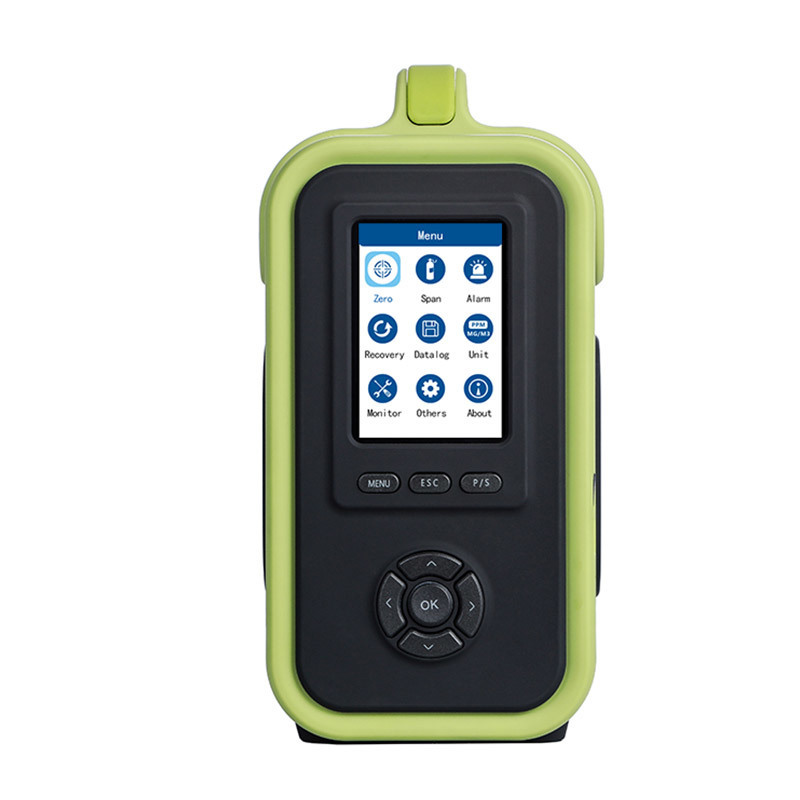

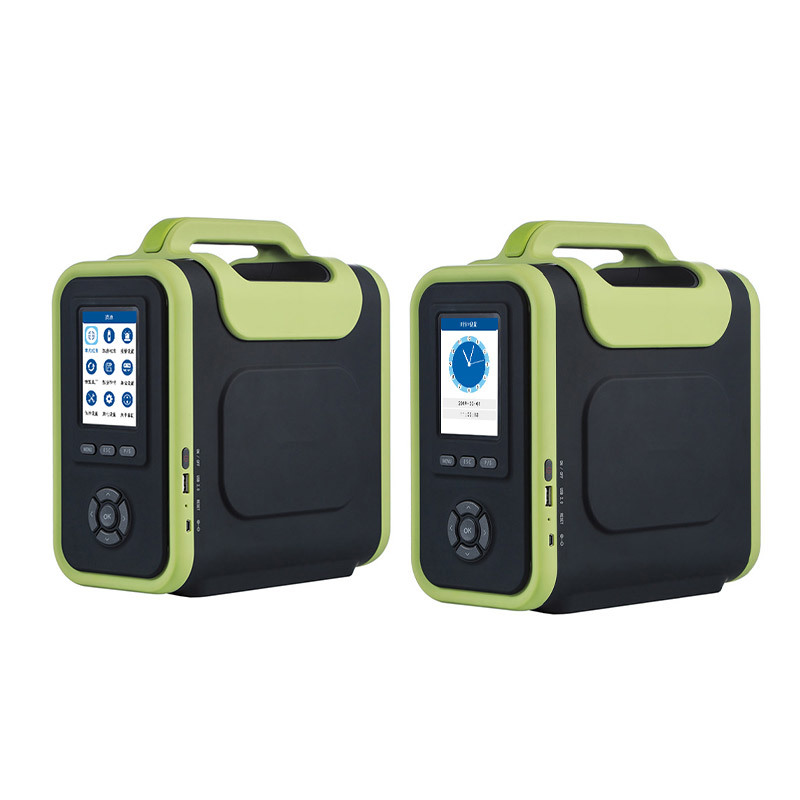

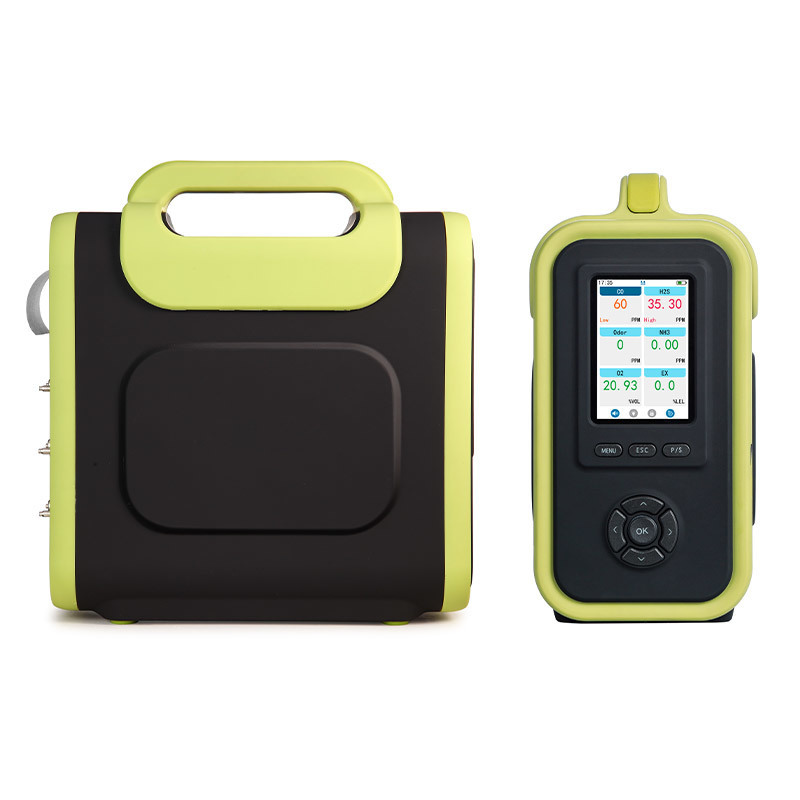

The SKY8000 is a portable gas analysis instrument widely used in industrial waste gas, air pollution source emission detection, boiler flue gas, automobile exhaust gas, and indoor air analysis applications. The analytical instrument can flexibly detect 1-18 kinds of gases with 1-3 selectable modules, each corresponding to one pump. Its modular internal structure allows separate air intake for disturbing gases, effectively avoiding cross interference.
Features include:
- 3.5-inch high-definition IPS LCD color screen with 150° wide viewing angle
- Chinese and English operation interface
- Fall alarm, password protection, and safety reminder functions
- Optional high temperature probe for harsh environments
- Large-capacity lithium battery with long standby time
- High-strength engineering material casing with ergonomic design
Product Advantages
- Exterior atmosphere with 3.5-inch high-definition color screen
- Modular internal structure
- High customizability
- Flexible, multi-pump system
- Multiple display modes
- Data storage capability
- Multiple security protections
- User-friendly interface
Product Pictures
Product Specifications
| Sensors |
Electrochemical (O2, H2S), IR (CO2, CH4) |
| Gas detected |
O2, H2S, CO2, CH4 |
| Measure range |
O2 0-30%VOL, H2S 0-5000PPM, CH4 0-100%VOL, CO2 0-100%VOL |
| Resolution |
1PPM (H2S), 0.1%VOL (O2, CO2, CH4) |
| Display |
Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional), pump condition, wireless status, printer status, screen shot status |
| Alarm |
Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm |
| Data storage |
Independent SD memory card (Max.32G), automatic measurement data recording with customizable time interval |
| Data transmission |
RS485 signal output, USB interface data transmission with upper computer software for data download, analysis and printing |
| Print function (Optional) |
Internal portable printer or external bluetooth printer |
| Print content (Optional) |
Text, graphics, barcodes, QR codes, curves, characters |
| Charger |
Standard Mini-USB charging port with 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer) |
| Language |
Chinese/English |
| Wireless network (optional) |
Bluetooth (2.4G high frequency, transmission distance less than 10m) |
| Probe specifications |
High temperature probe gun required for flue gas environments (resistant to 600°C or 1000°C), available in 0.3m, 0.7m and 1m lengths |
Standard Accessories
- User manual
- Certificate/warranty card
- 8G SD card (larger capacity available on request)
- Charging adapter
- Water trap filter

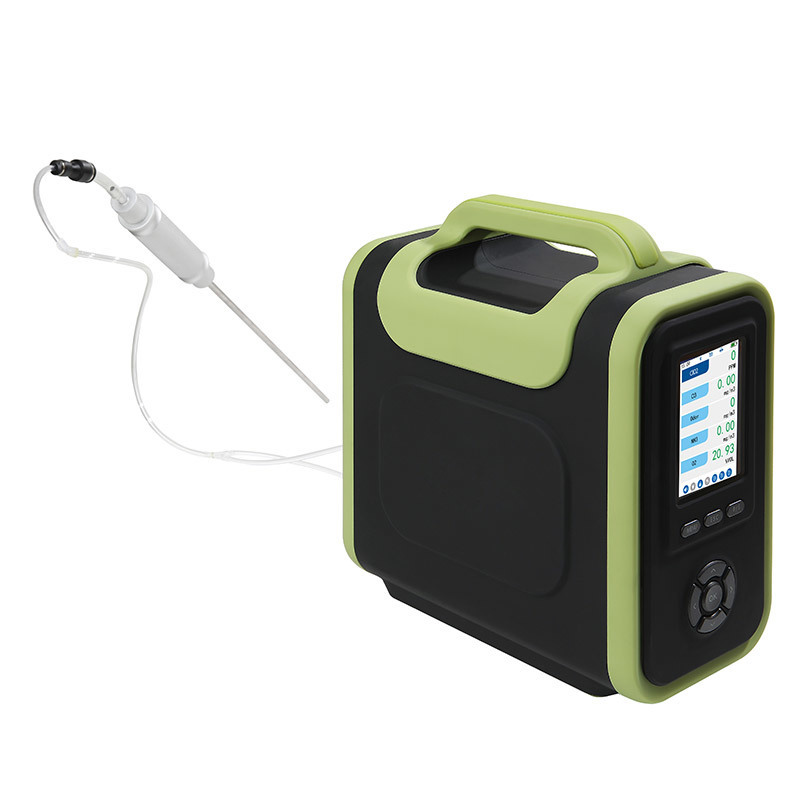

- Intake sampling probe
- 1000mm hose
- Protective suitcase (non-toxic, explosion-proof, waterproof, heat-resistant)
Optional Accessories
- Built-in thermal printer
- High temperature flue gas detector set
Application Case: Thailand Government Department Flue Gas Emissions Detection
The SKY8000-M7 was used to monitor flue gas emissions and air quality at factory boundaries, detecting seven gases (O3, NO, NO2, NOX, HCL, CH2O, VOC) with data storage capability for compliance verification.
Solution Features:
- High-performance sensors for air quality and flue gas detection
- 32G memory card for extensive data storage
- 500ml/min pump suction for rapid detection
- Standard filter for water vapor and dust protection
Why Choose Us?
- 25+ years R&D team experience
- Certifications: ISO9001, ISO45001, IECEx, ATEX, CE
- 5-7 day delivery
- 80,000 unit yearly capacity
- 24/7 professional support
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in gas detection equipment design, production, and sales with solutions for Oil, Chemical, Medicine, Energy, Environmental Protection, and other industries.
Certifications
IECEx, ATEX, CE, TEST Report, ISO 9001, ISO 45001 - Comparable to international brands with competitive pricing.
FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a professional manufacturer specializing in gas detectors for over 10 years.
Q2: What is the MOQ?
A2: Usually 1 piece.
Q3: How about the quality of your products?
A3: Our products use imported sensors and components with full certifications.
Q4: How long is the warranty?
A4: 1 year warranty with lifetime maintenance service.
