IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant

기본 정보
원래 장소: 중국
브랜드 이름: SAFEGAS
인증: ATEX/EMC/IECEX
모델 번호: Sky3000
최소 주문 수량: 1
가격: 협상 가능
포장 세부 사항: 알루미늄 가방
배달 시간: 3-5 일
지불 조건: t/t
공급 능력: 한 달에 1000 조각
상세 정보
가스 감지: 상세화됩니다 탐지 원리: 상세화됩니다
범위를 측정하십시오: 애플리케이션에 따른 스페치피에드. 해결: 애플리케이션에 따른 스페치피에드.
응답 시간: ≤20초 정도: 특수 가스를 제외하고 ≤±1-5%FS
언어: 중국어/영어/러시아어/광택제 (더 많은 언어는 사용자 정의 할 수 있음) 전원 온 후 자동으로 테스트하고 교정합니다: 재설정, 최대 값 (최대), 최소값 (최소), 스텔, TWA 값 포함
단위: ppm, mg/m³, %lel, %vol 표시하다: LCD (160 x 96), 180 ° 회전
데이터 레코드: 100,000 판독 값, 스토리지 간격은 5 ~ 3600 초로 조정 가능하며 데이터를 PC로 내보낼 수 있습니다.
강조하다:

IECEX certified multi gas detector

,

ATEX portable gas detector

,

IP67 waterproof multi gas detector


제품 설명

Product Name

SKY3000 Portable Pumping Gas Detector

Product Overview

SKY3000 is a IECEX/ATEX/EMC certified portable multi gas detector. It is suction type with built-in pump to detect up to 6 gas types in 1 device. The standard gas type is multi 4 (CO H2S O2 LEL) gases. There are thousands of gas types for selection to support very wide applications. It’s with wireless communication so user can access to real-time data and alarm status remotely. The standard datalog function to export data to PC and no need software.

Product Advantage

  1. IP67 water & dust resistant and 3 meter drop resistant case, rugged and durable designs.
  2. Standard man down alarm function
  3. Real time value, TWA, STEL, MAX, MIN multiple numerical display
  4. One press to restore factory settings.
  5. Large graphical display can rotate 180°
  6. Standard water trap filter to protect the sensor
  7. With docking station to perform daily bump test and calibration (Optional)
  8. Wireless data transmission including Lora, Bluetooth (Optional)
  9. Support backlight function the backlight time can be manually set
  10. Low power consumption, long stand by time
  11. Support firmware upgrade remotely

Technical parameters

Gas Detected
To be specified
Detection Principle
To be specified
Measure range
Specified according to application.
Resolution
Specified according to application.
Response time
≤20 seconds
Precision
≤±1-5%F.S except for special gases
Language
Chinese/English/Russian/Polish (More language can be customized)
Automatically test and calibrate after power-on
Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit
PPM, mg/m³, %LEL, %VOL
Display
LCD (160 x 96), 180° rotate
Backlight
Turned on automatically when alarming, the backlight time can be manually set
Data record
100,000 readings, the storage interval is adjustable from 5 to 3600 seconds, data can be exported to PC no need software
Alarm
95dB@30cm buzzer alarm, flashing red LED alarm and vibration alarm. Alarm status indication on the screen, alarm latched; diagnostic alarm and battery under-voltage alarm, pump failure alarm; man down alarm
Battery
3.7V rechargeable lithium battery, battery capacity 2200mA
Working hours
More than 15 hours in continuous pumping mode
Charger
Travel charger with DC interface, charging time ≥ 4 hours
Working temperature
-20℃~+50℃
Explosion-proof grade
IECEx: Ex ia IIC T4 Ga; ATEX: II 1G Ex ia IIC T4 Ga
Humidity
10~90%RH (no condensation)
Certification (EU regulations)
2004/34/UE (ATEX)
Protection grade
IP67
Environmental pressure
86~106Kpa
Size
157×84.5×59.5mm (including back clip/water trap filter) (length × width × height)
Weight
365g (including battery, belt clip and filter)

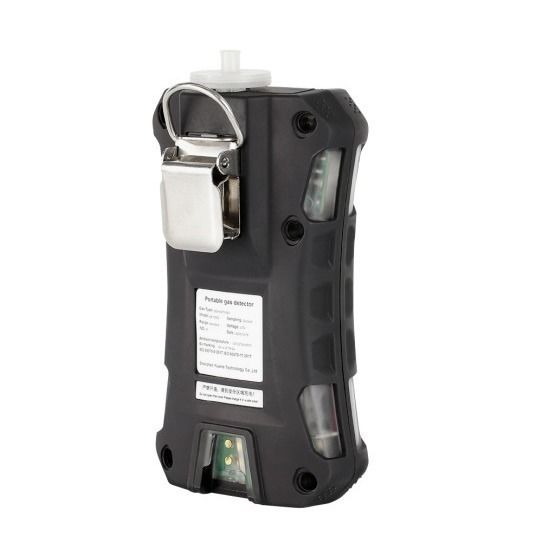

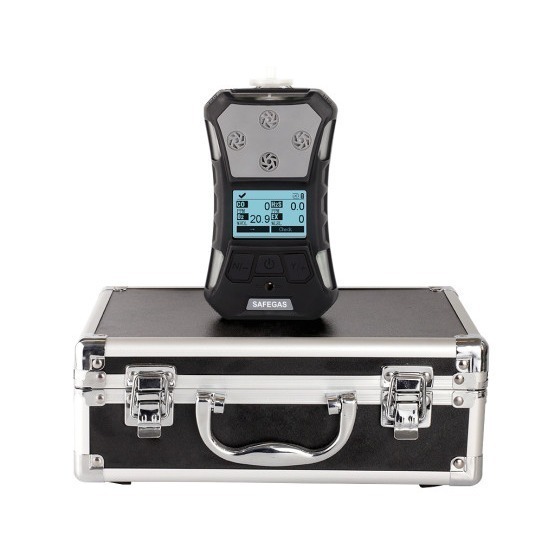

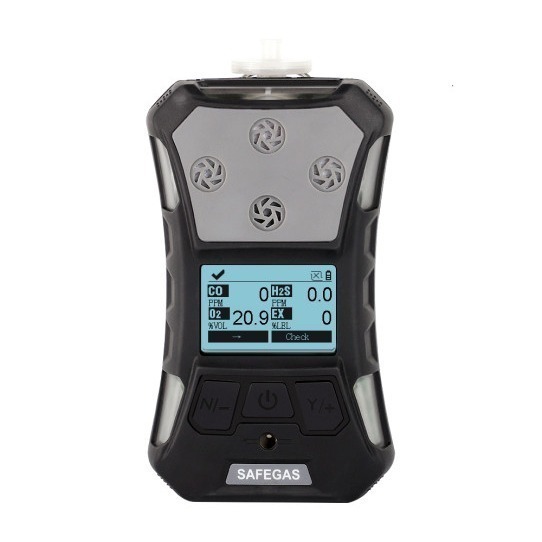

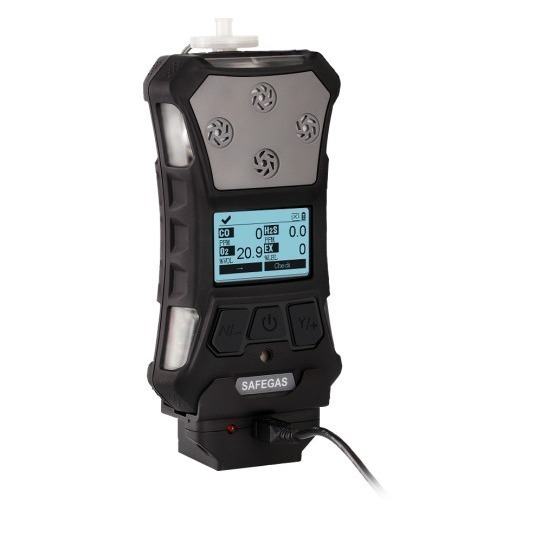

Product Images


IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant 0

IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant 1

IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant 2

IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant 3
