| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | SAFEGAS |
| 인증: | ATEX/IECEX |
| 모델 번호: | YT-98H |
| 최소 주문 수량: | 1 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 상자 (43*27*15cm) |
| 배달 시간: | 3-5 일 |
| 지불 조건: | t/t |
| 공급 능력: | 한 달에 3000 조각 |
| 가스 감지: | VOC, O2, LEL, 독성 가스 등 | 탐지 원리: | PID, 전기 화학, IR, 촉매 연소 등 |
|---|---|---|---|
| 범위를 측정하십시오: | 상세화됩니다 | 해결: | 상세화됩니다 |
| 표시하다: | 2.4 인치 칼라 디스플레이, 결의안 320*240 | 컨텐츠 표시: | 가스 분자식, 농도, 단위, 펌프 상태 등 |
| 알람 (선택 사항): | 디스플레이 화면의 버저, 경보 상태 프롬프트, 높은 경보 값은 고객이 설정할 수 있습니다. | 언어: | 중국어와 영어 |
| 통신 및 데이터 다운로드: | PC 소프트웨어를 사용하면 히스토리 데이터를 컴퓨터에서 다운로드, 저장, 인쇄 및 분석 할 수 있습니다 (선택 사항) | 온도: | –10 ℃ ~ 55 ℃ |
| 습기: | 0-95%RH (응축 없음) | 사례: | 다이 캐스트 알루미늄 |
| 힘: | 12-24V DC | 치수: | 286*202*96mm(H x W x D) |
| 무게: | 3.4kg(경보등 포함 3.8kg) | 방폭 등급: | 전 Ｄ IIC T6 Gb |
| 강조하다: | IECEx ATEX certified multi gas detector,fixed single gas detector with remote control,noncontact magnetic wand gas detector |
||

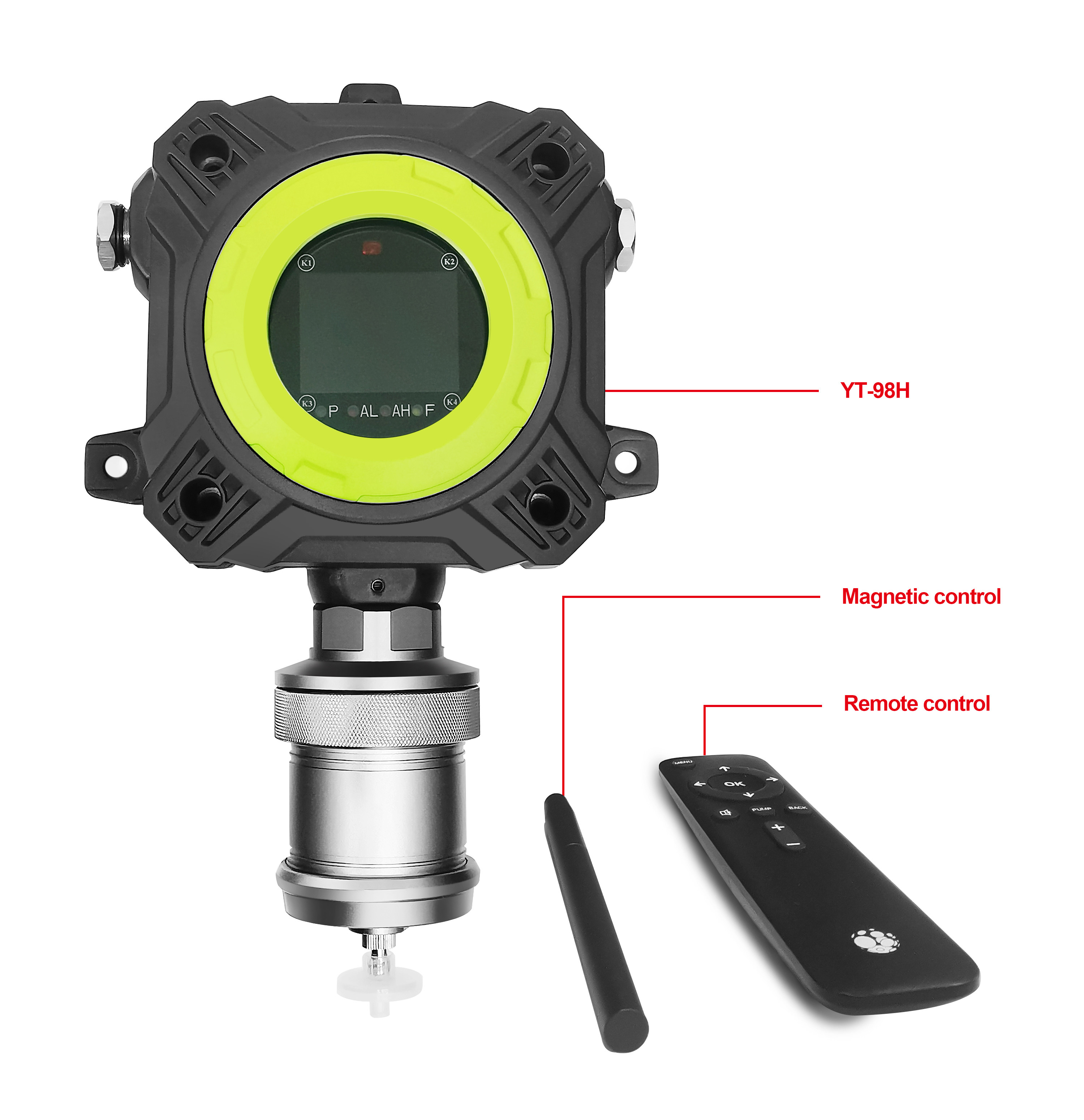

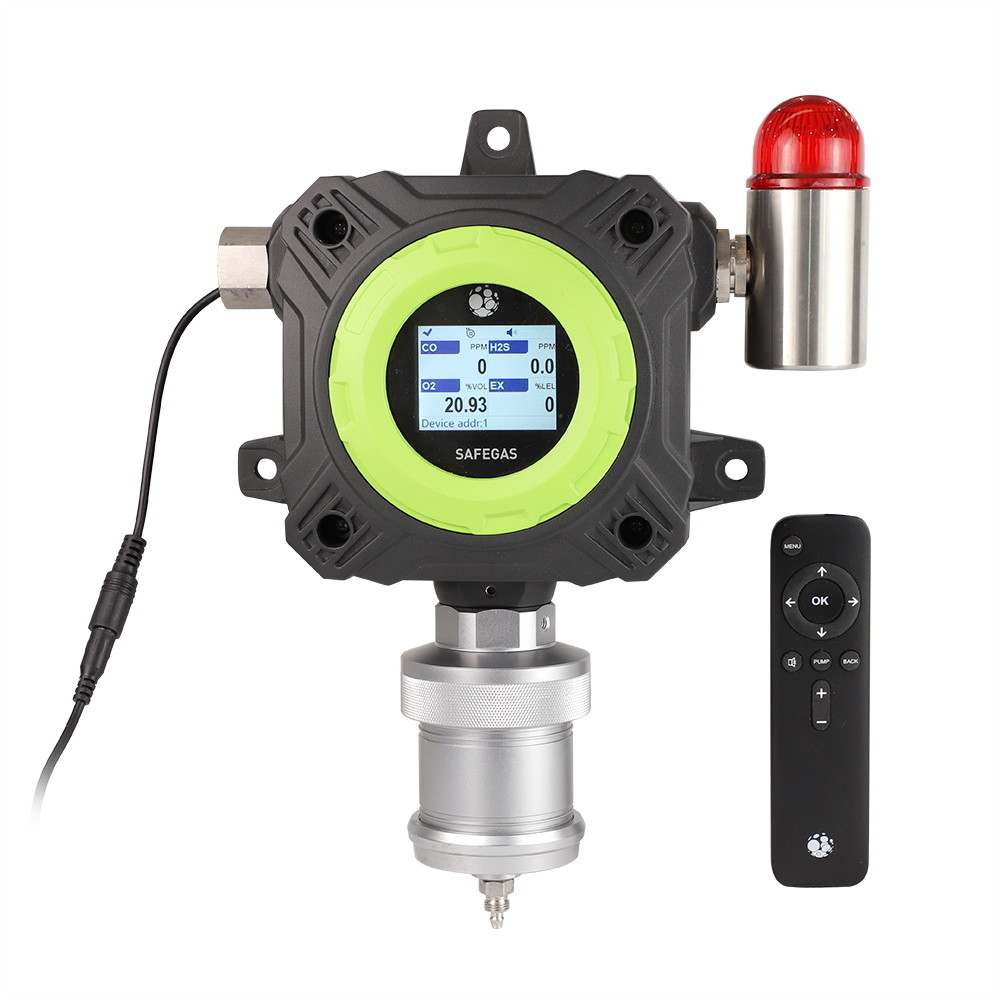

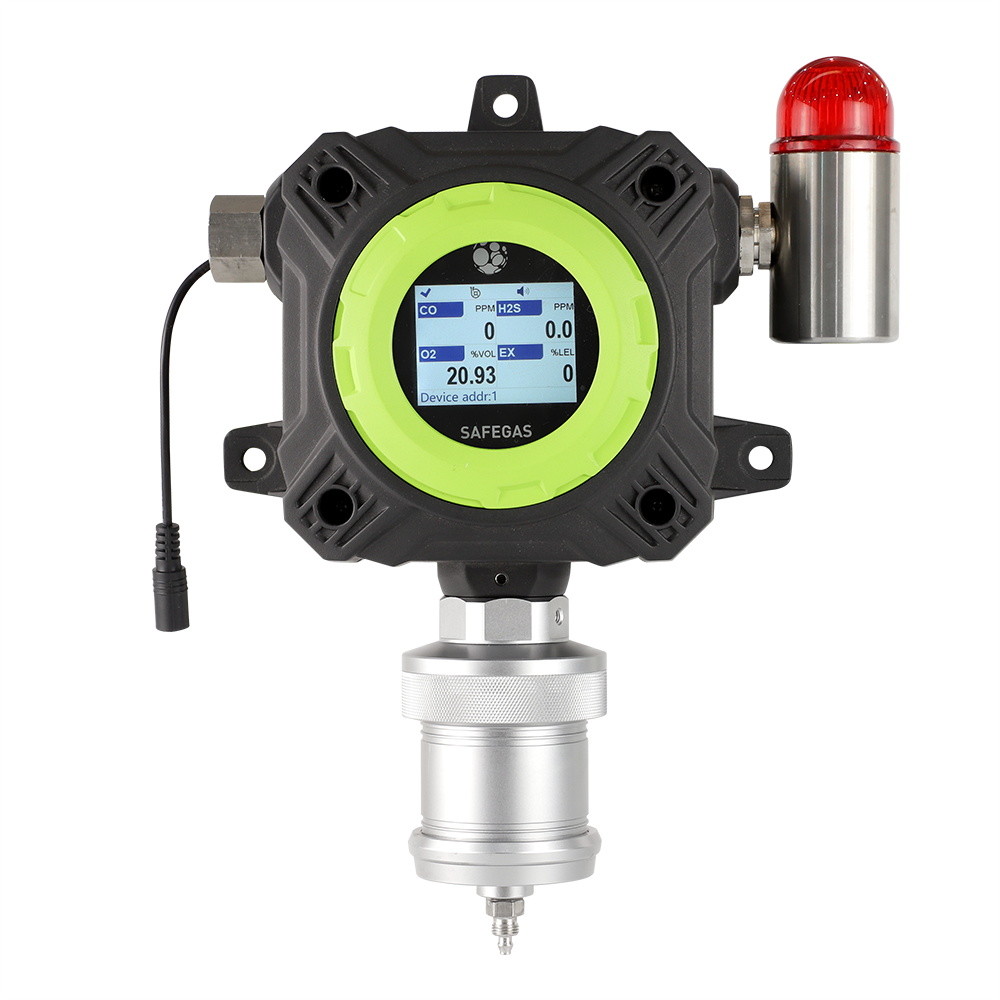

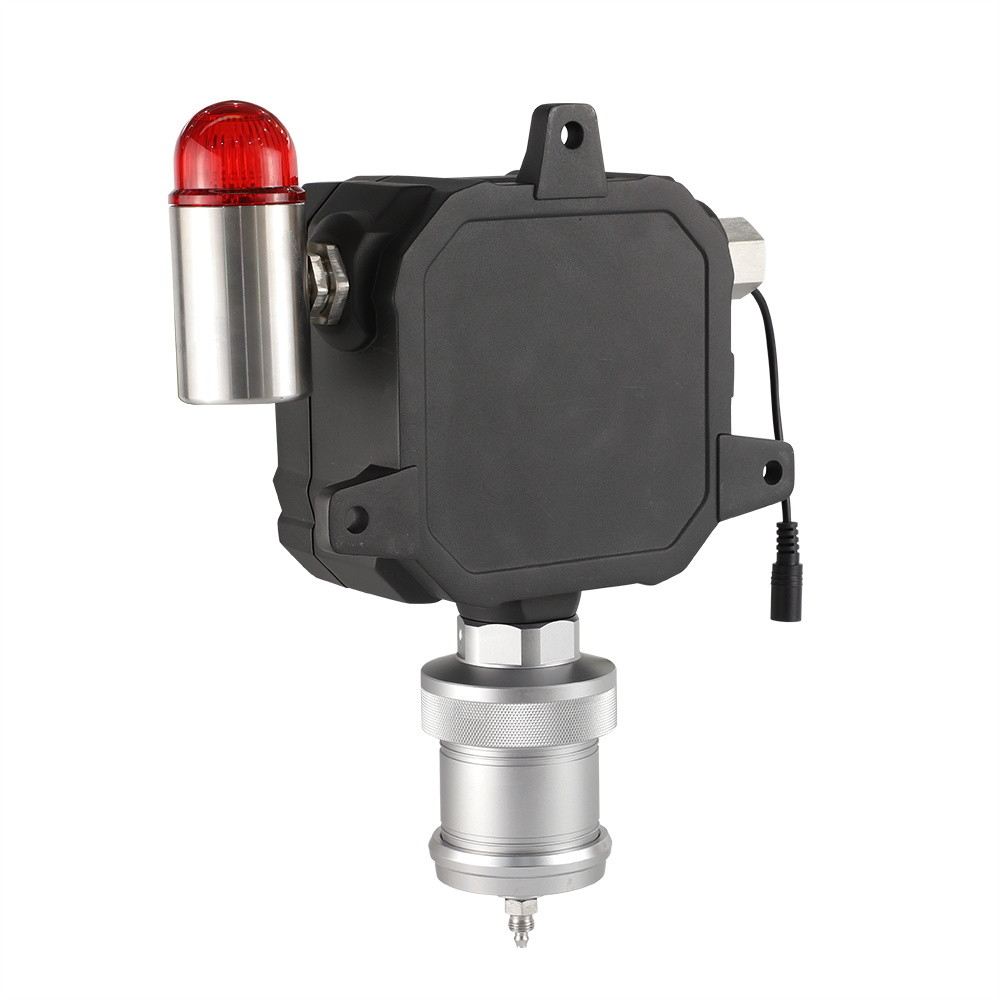

YT-98H-D/YT-98H-D-A series is a fixed single & multi gas detector capable of detecting 1-6 kinds of gases simultaneously and continuously. With IECEx and ATEX certification and noncontact magnetic wand design, it can be installed and operated in hazardous areas. It supports 3-wire 4-20mA, RS485 Modbus, relay and optional Hart signal output, making it compatible with most control systems. Optional wireless data transmission allows users to view real-time data remotely via laptop or mobile phone.
| Parameter | Specification |
|---|---|
| Gas Detected | VOC, O2, LEL, Toxic gases, etc |
| Detection Principle | PID, Electrochemical, IR, catalytic combustion, etc |
| Measure Range | To be specified |
| Resolution | To be specified |
| Accuracy | ≤±2%FS (depending on the specific sensor) |
| Response Time (T90) | 20s (depending on the specific sensor) |
| Repeatability | ≤±1% |
| Pump Flow | 0.5 L/Min |
| Zero Shift | ≤±1%(F.S./year) |
| Display | 2.4-inch color display, resolution 320*240 |
| Display Content | Gas molecular formula, concentration, unit, pump status, etc |
| Alarm (Optional) | Buzzer, alarm status prompt on display, customizable high/low alarm values |
| Language | Chinese and English |
| Communication | PC software for data download, storage, printing, and analysis (optional) |
| Temperature | –10℃~55℃ |
| Humidity | 0-95%RH (no condensation) |
| Case | Die-cast aluminum |
| Power | 12-24V DC |
| Dimensions | 286*202*96mm (H x W x D) |
| Weight | 3.4kg (3.8kg with alarm light) |
| Explosionproof Grade | Ex d IIC T6 Gb |
Company ProfileEstablished in 2010, Shenzhen Yuante Technology Co., Limited specializes in the design, production, and sales of high-end gas detection equipment and systems for 16 years. With gas detectors as our core product, we offer complete production lines and solutions tailored to various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
Through rapid development over the past decade, Yuante has become an influential supplier in the industry. We adhere to the management philosophy: "Market is orientation; Innovation is motivation; Quality to survival; Development to growth."
With a friendly, open, and strict corporate culture, we've assembled talented teams in management and R&D. Our staff collaborates effectively in product development, production, and maintenance, embodying our customer-oriented philosophy to earn client trust and support.
The essence of a detector is accuracy and faster response. Leveraging years of measurement experience and unique solutions, through independent R&D and learning overseas technologies, our products surpass domestic brands and compete with global leaders. We continuously seek development to meet diverse customer demands.
Product LineCertificationsCooperated ClientsFAQWe are based in Guangdong, China, established in 2010. Our primary markets include Southeast Asia (20%), North America (17%), South America (15%), South Asia (10%), Eastern Asia (10%), Mid East (10%), with smaller percentages in other global regions. Our office employs 51-100 people.
Portable Gas Detectors, Fixed Gas Detectors, Gas Analyzers, Multi Gas Detectors
We have an independent dust-free production workshop, modern equipment, and professional staff. We offer competitive pricing and diversified sales strategies. Our 24/7 service provides rapid response and technical guidance.
