| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | SAFEGAS |
| 인증: | ATEX/IECEX |
| 모델 번호: | YT-98H |
| 최소 주문 수량: | 1 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 상자 (43*27*15cm) |
| 배달 시간: | 3 일 |
| 지불 조건: | T/T, 서부 동맹 |
| 공급 능력: | 한 달에 3000 조각 |
| 가스 감지: | CO/일산화탄소 | 탐지 원리: | 전기화학 |
|---|---|---|---|
| 힘: | 12-24V DC | 정확성: | ≤±2-5%FS(특정 센서에 따라 다름) |
| 응답 시간 (T90): | 15-30초(특정 센서에 따라 다름) | 반복성: | ≤ ± 1% |
| 펌프 흐름: | 0.35-0.5 L/분 | 온도: | –20 ℃～ 55 ℃～ |
| 습기: | 0-95%RH (응축 없음) | 알람 (선택 사항): | 디스플레이 화면의 버저, 경보 상태 프롬프트, 높은 경보 값은 고객이 설정할 수 있습니다. |
| 강조하다: | Wireless Data Transmission Fixed Gas Detector,IECEx ATEX Certification Carbon Monoxide Detector,Electrochemical Sensor Single Gas Detector |
||

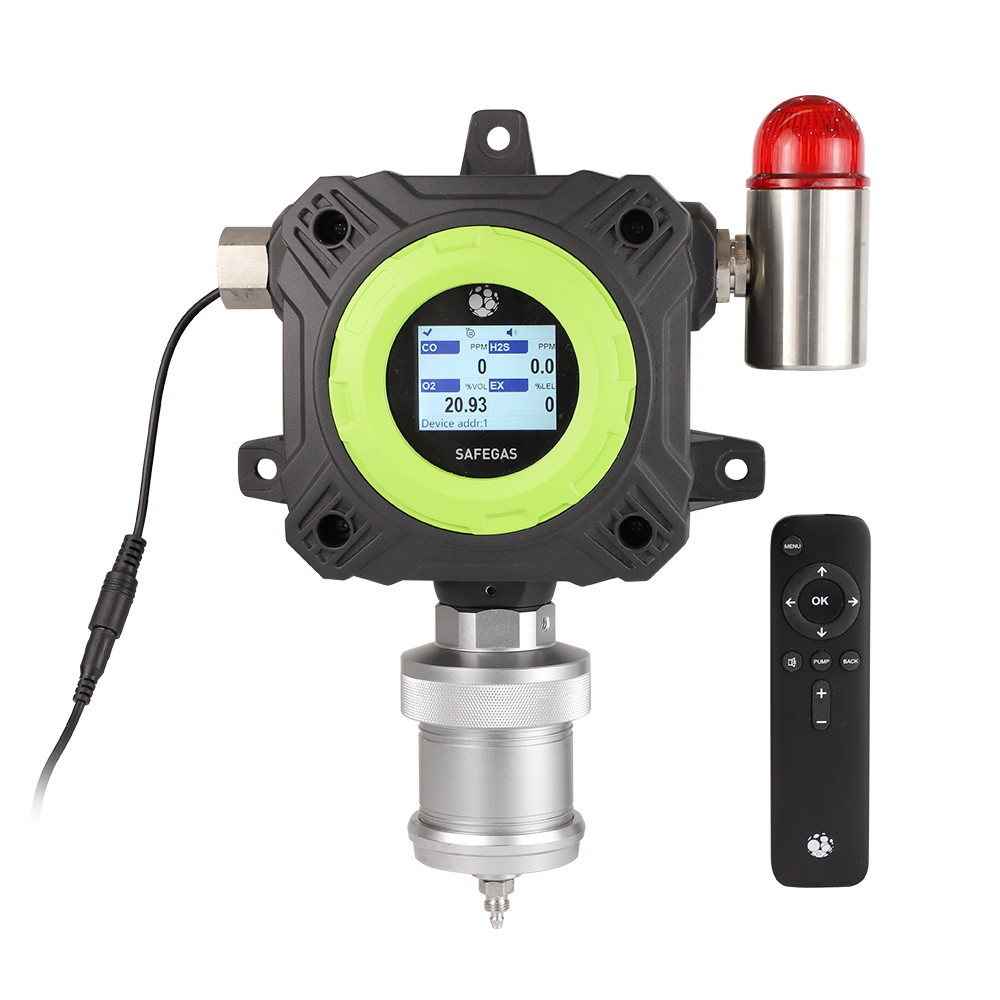

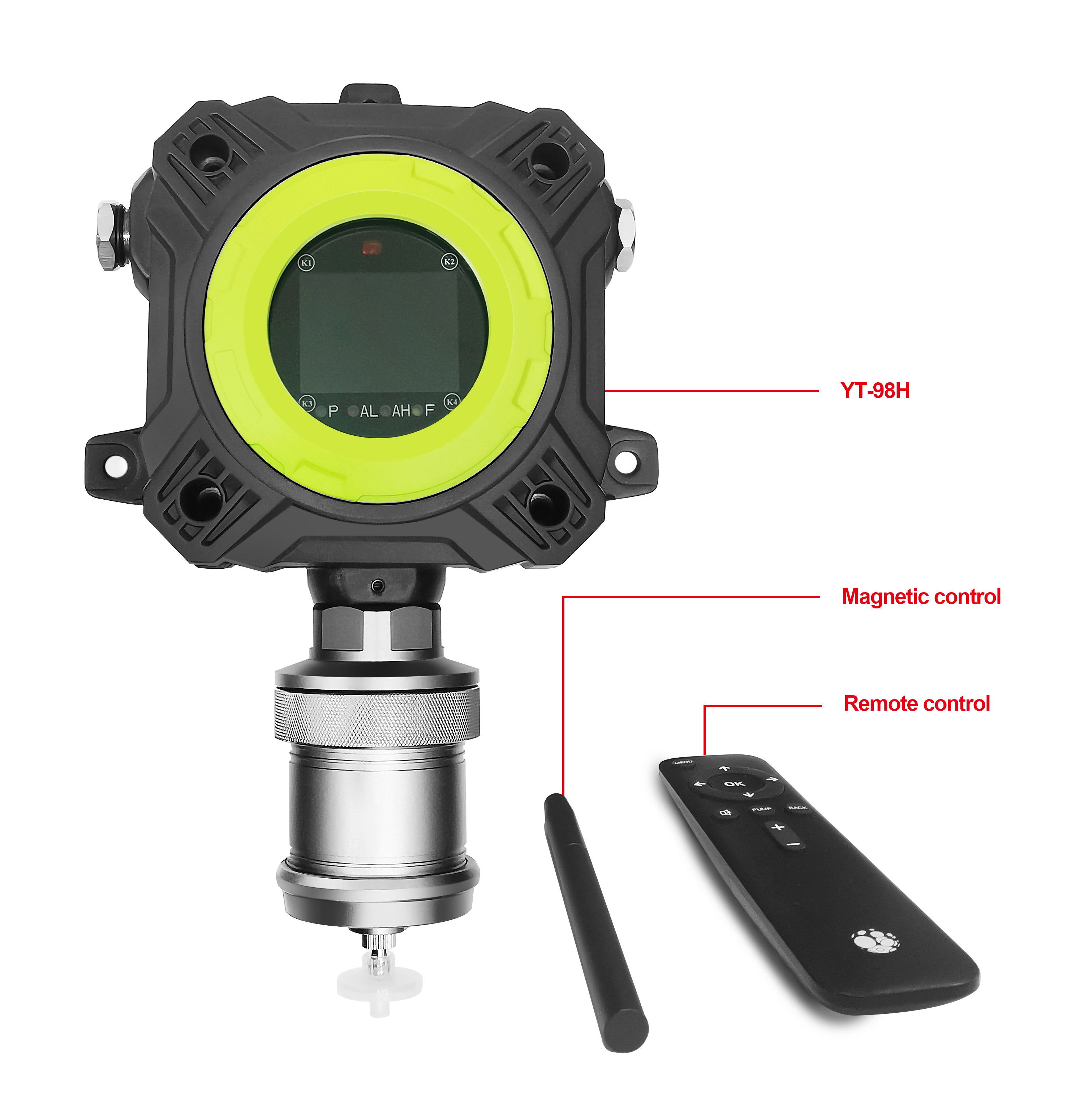

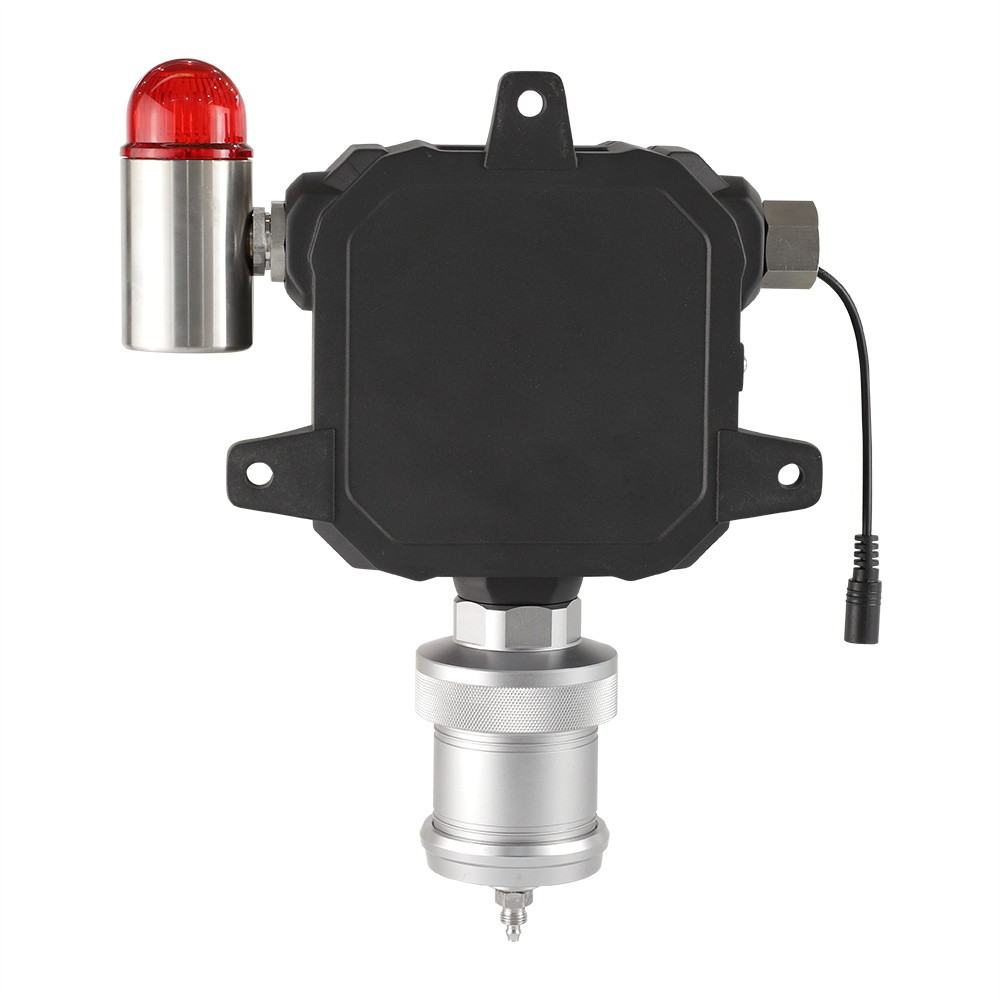

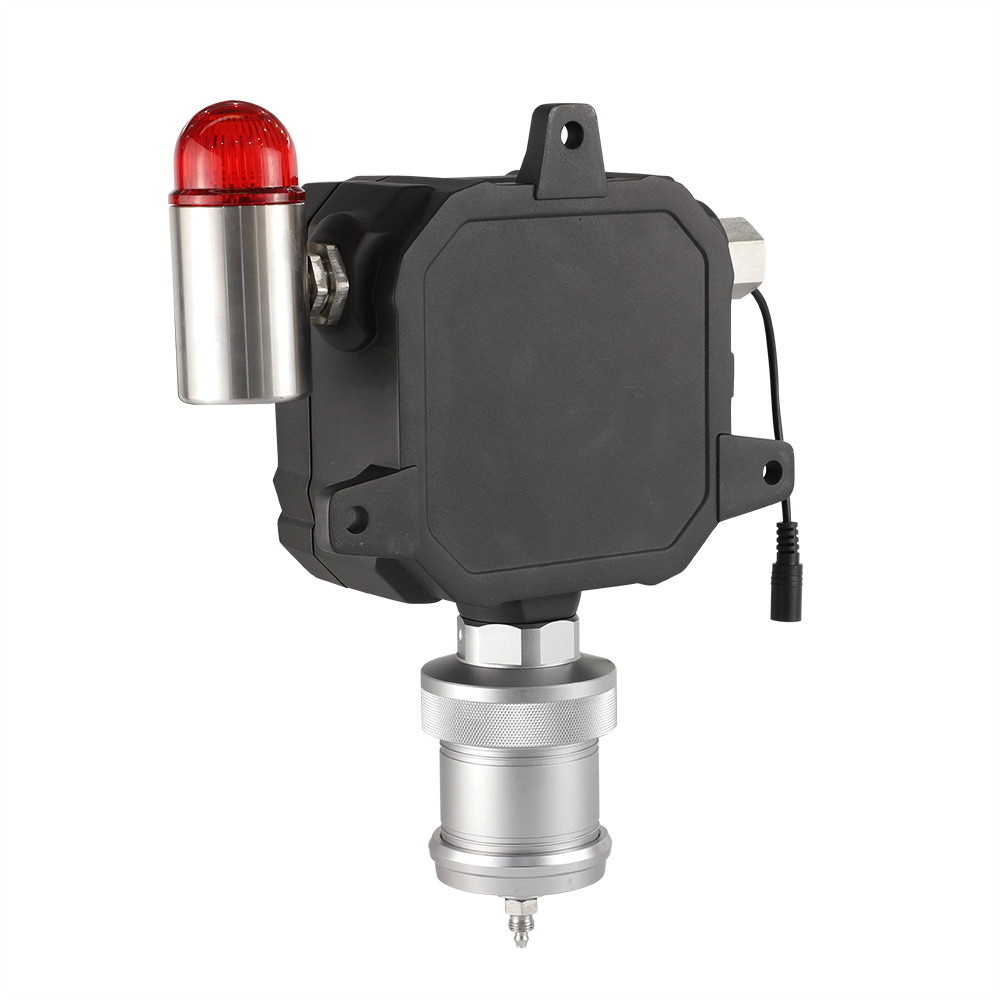

The YT-98H and YT-98H-A are built-in pump-suction fixed gas detectors with IECEx and ATEX certifications. Featuring non-contact magnetic wand design, these detectors are engineered for installation and operation in explosion-proof areas and the Oil & Gas industry.
| Product Dimensions | 286 × 202 × 96mm (H × W × D) |
| Product Weight | 3.4kg (3.8kg with alarm light) |
| Gas Type | CO/Carbon Monoxide |
| Sensor Technology | Electrochemical principle |
| Measurement Range | 0-500/1000/2000 PPM |
| Resolution | 1 PPM |
| Precision | ≤±5% F.S |
| Pump Flow Rate | 0.6(±0.1) L/Min |
| Display | 2.4-inch high-definition color display |
| Power Supply | 12~24V DC |
| Installation Method | Wall-mounted |
| Operating Temperature | -10ºC to +55ºC |
| Operating Humidity | 0~95% RH (non-condensing) |
| Explosion-Proof Rating | Ex db IIC T6 Gb |
Safegas specializes in the design, production, and sales of environmental monitoring equipment and systems with 16 years of industry experience. Our core focus on gas detectors has enabled us to develop comprehensive production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, and more.
A gas detector is an instrument for detecting gas leakage concentrations, including portable gas detectors and fixed gas detectors.
Gas detectors monitor combustible gases such as natural gas (methane), liquefied gas, coal gas, acetylene, and toxic gases including carbon monoxide, hydrogen sulfide, ammonia, chlorine, and others.
PPM represents the volume concentration of gas, meaning the volume of pollutants contained in one million volumes of air. For example, 30ppm ammonia indicates 30 volumes of ammonia per million volumes of air.
