Multi Gas Detector for Propane (C3H8) and Oxygen (O2) Concentration Monitoring
Technical Specifications
| Gas Detected | Propane (C3H8), Oxygen (O2) |
| Detection Principle | Infrared Ray (C3H8), Electrochemical (O2) |
| Installation Method | Wall-mounted, piping type, flow-type (according to detected environment) |
| Measure Range | 0-5000, 10000ppm, 2, 100%Vol, 100%LEL (Propane); 0-30%VOL (O2) |
| Resolution | 1ppm, 0.1%VOL, 1%LEL |
| Accuracy | ≤±2-5%FS |
| Signal Output | 4-20MA, RS485, relay |
| Response Time (T90) | 15-30s (depending on specific sensor) |
| Recovery Time | ≤10S |
| Repeatability | ≤±1% |
| Display | 2.4-inch color display, resolution 320*240 |
| Operating Language | English/Chinese |
| Display Content | Gas molecular formula, concentration, unit, pump status, etc. |
| Temperature | -20ºC~55ºC |
| Humidity | 0-95%RH |
| Explosion-Proof | IECEX: Ex db IIC T6 Gb
ATEX: Ex db IIC T6 Gb |
| Degree of Protection | IP66 |
| Alarm Mode | Sound, light |
| Operating Time | 24h |
| Dimensions | 43*27*15cm |
| Weight | 4.6kg |
YT-98H Model (with Display)

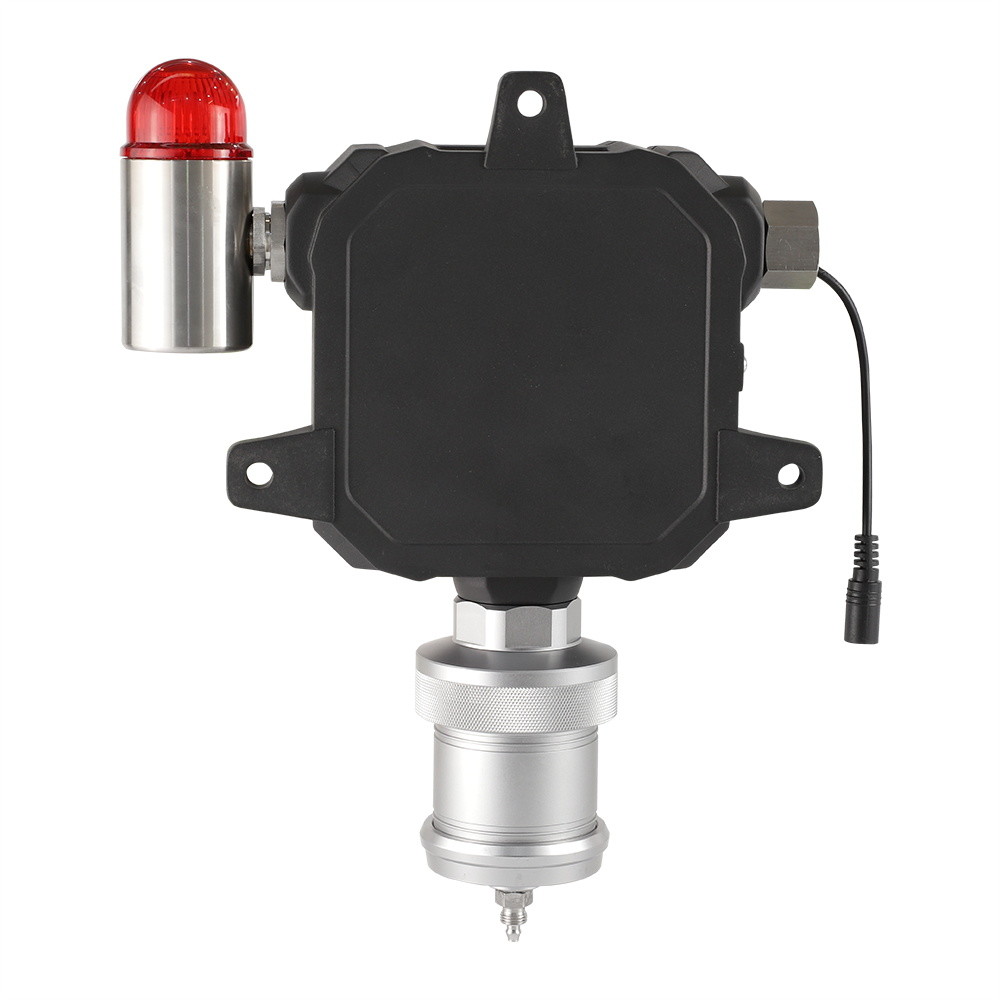

YT-98H-A Model (with Display and Alarm Light)
Product Overview
The YT-98H/YT-98H-A Fixed Gas Detector is a built-in pump-suction single and multi-gas detection system with IECEx and ATEX certification. Featuring non-contact magnetic wand design, it can be safely installed and operated in explosion-proof areas and Oil & Gas industry applications. In addition to a 3-wire 4 to 20-mA output with relays, it also offers HART and Modbus protocols, ensuring compatibility with most control systems. Optional wireless functionality allows operators to view data remotely on laptops, mobile phones, or cloud systems.
Built with a high-suction, long-life vacuum pump that provides over 12,000 hours of continuous operation, this detector offers faster response times compared to traditional diffusion sampling methods. It can be installed in normal open areas or underground restricted confined spaces to detect gas concentrations at high altitudes, effectively protecting maintenance personnel safety.
The 2.4-inch high-definition color screen features simulated menu icons with switchable Chinese and English interfaces. Capable of detecting up to six gases simultaneously, the system allows for customizable high and low alarm values and unit switching.
Infrared remote control enables operation without opening the cover. Standard outputs include three-wire 4-20mA, RS485, and one group of relay output (up to two groups optional). External sound and light alarm functions do not occupy relays. Optional outputs include 0-10V, 0-5V, and 1-5V.
The detector is explosion-proof, lightning-protected, anti-static, surge-protected, and waterproof with IP65 protection rating. Optional features include sound and light alarm (integrated or external), water vapor filter cartridge, automatic dehumidification drainage system, manual drainage dehumidification filtration system, and high-temperature flue gas pretreatment system.
Wireless transmission options include transmitter and receiver (2km, 5km, 8km unobstructed) and 2G/4G wireless signal transmission (unlimited distance with mobile phone card or data card). The data monitoring cloud platform enables remote data reading from servers, allowing multiple users to simultaneously manage, read, store records, and view real-time data.
Key Advantages
- Simultaneous detection of up to 6 different gases
- Reduces multiple installations in complex multi-gas environments, saving time and resources
- 2.4-inch industrial-grade high-definition color screen with 320*240 resolution and 120-degree wide viewing angle
- Optional wireless module for cloud platform data upload with SMS reminder functionality
- Internal suction pump for fast response times
- Full software automatic verification and zero calibration functions for enhanced accuracy and reliability
- Standard 4-20mA current signal, RS485 modbus signal, and relay signal output
- Infrared remote control for detector operation and settings modification
- Optional sound and light alarm functionality when reaching alarm points
