| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | SAFEGAS |
| 인증: | ATEX/EMC/IECEX |
| 모델 번호: | 미세 타 |
| 최소 주문 수량: | 1 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 상자 (22*16*11cm) |
| 배달 시간: | 3 일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 달 당 3000 조각 |
| 작업 방법: | 확산 | 응답 시간 (T90): | ≤30s |
|---|---|---|---|
| 데이터 레코드: | 1000 세트 데이터 기록 및 100 세트 이벤트 기록 | 배터리: | 3.7V 충전식 리튬 배터리, 배터리 용량 2300mA |
| 무선 전송: | 블루투스 전송 기능 (선택) 로라 전송 기능 (선택) | 근무시간: | 대기 시간 24시간, 충전 시간 <6시간 |
| 인증: | ATEX/IECEx/EMC | 보호 등급: | IP66/IP68 |
| 무게: | 240g (리?? 배터리) |

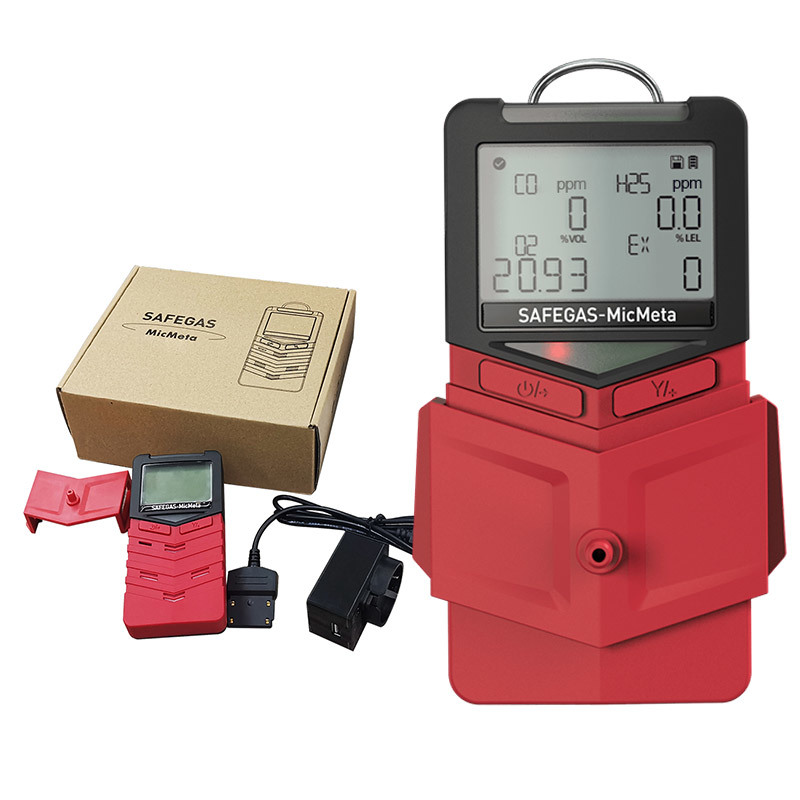

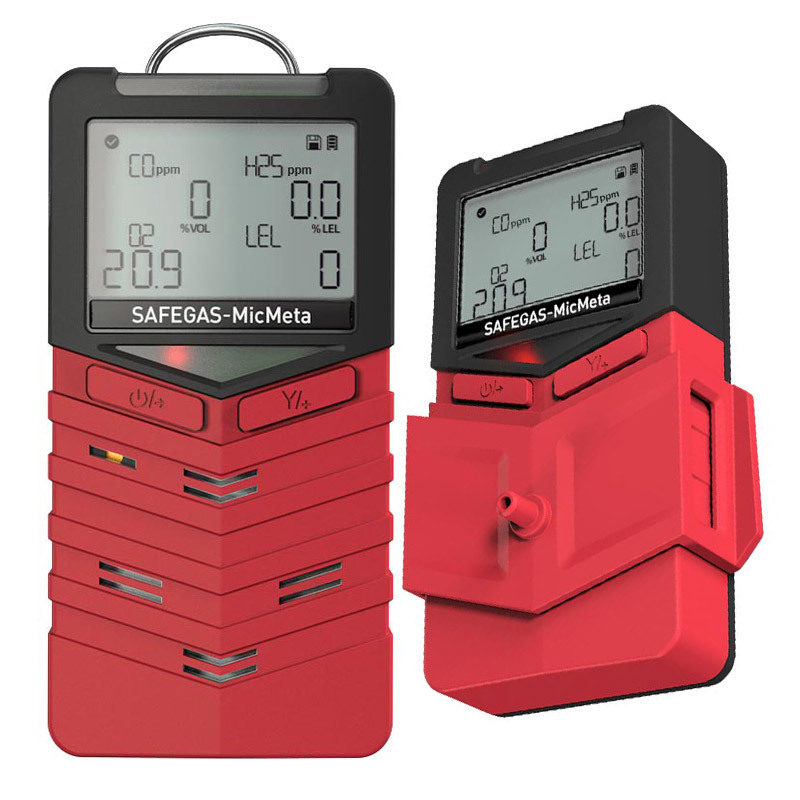

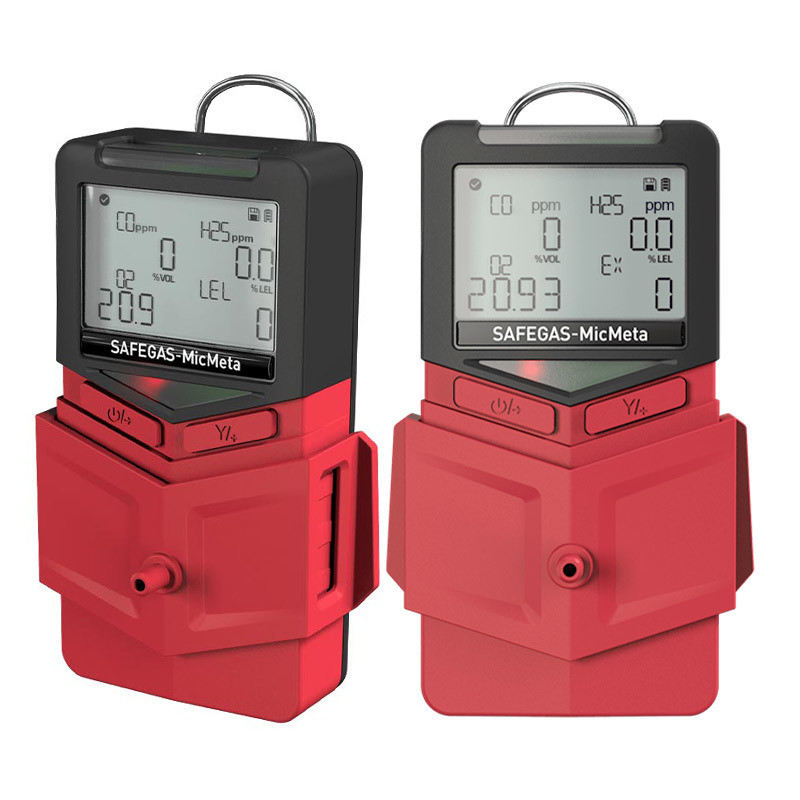

MicMeta is a multi-gas detector certified by IECEx, ATEX, and EMC. This lightweight, compact device features standard detection for CO, H2S, O2, and LEL gases, with support for hundreds of selectable gases. Includes standard man-down alarm and data logging functions, with optional Lora and Bluetooth wireless data transmission for easy data access.
| Sampling method | Diffusion |
| Gas type | H2S LEL O2 CO |
| Measure range | Customized |
| Resolution | Customized |
| Response time | ≤60S (T90) |
| Precision | ≤±5%FS or ±10% (depends on specific sensor) |
| Language | Chinese/English |
| Automatically test and calibrate after power-on | Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ can be switched and displayed by one key, with automatic concentration value conversion |
| Display | Segment code LCD display |
| Calibration platform | Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional) |
| Data record | 1000 sets data records and 100 sets events records |
| Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red bars with alarm status indication on screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2300mA |
| Working hours | Standby time 18h, charging time <6h |
| Wireless transmission | Bluetooth transmission function (optional), Lora transmission function (optional) |
| Explosion-proof grade | CNEX:Ex ia IIC T4 Ga |
| EU regulations | 2004/108/EC(EMC), 94/9/EC(ATEX), CE |
| Protection grade | IP66/IP68 |
| Working temperature | -20°C~55°C |
| Humidity | 0-95%RH (non-condensing) |
| Environmental pressure | 86~106Kpa |
| Size | 113*60*32mm (length * width * height) |
| Weight | 200g (with lithium battery) |
Safegas is a company that focuses on the design, production and sales of environmental monitoring equipment and systems for 16 years. With "gas detector" as the core product, we have complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, and Household Appliances.
For years, Safegas has maintained the management concept "Market is orientation. Innovation is motivation. Quality to survival. Development to growth." With friendly, open, and strict corporate culture and standardized management, Safegas has gathered talented professionals and built strong management and R&D teams.
Through years of measurement experience and Safegas solutions, combined with independent research, cooperative development, and learning overseas latest technology, Safegas products are domestically advanced and can compete with international brands. We continuously seek development and progress to meet diversified customer demands.
