| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | SAFEGAS |
| 인증: | ATEX/IECEX |
| 모델 번호: | YT-98H |
| 최소 주문 수량: | 1 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 상자 (43*27*15cm) |
| 배달 시간: | 3 일 |
| 지불 조건: | T/T, 서부 동맹 |
| 공급 능력: | 달 당 3000 조각 |
| 가스 감지: | CO/일산화탄소 | 탐지 원리: | 전기화학 |
|---|---|---|---|
| 힘: | 12-24V DC | 정확성: | ≤±2-5%FS(특정 센서에 따라 다름) |
| 응답 시간 (T90): | 15-30초(특정 센서에 따라 다름) | 반복성: | ≤ ± 1% |
| 펌프 흐름: | 0.35-0.5 L/분 | 온도: | –20 ℃～ 55 ℃～ |
| 습기: | 0-95%RH (응축 없음) | 알람 (선택 사항): | 디스플레이 화면의 버저, 경보 상태 프롬프트, 높은 경보 값은 고객이 설정할 수 있습니다. |

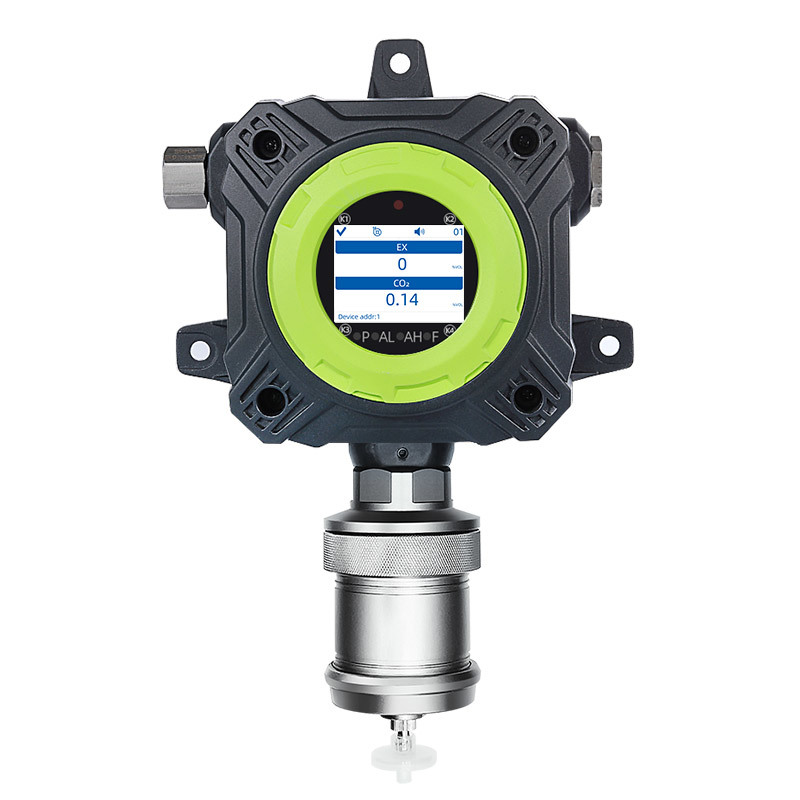

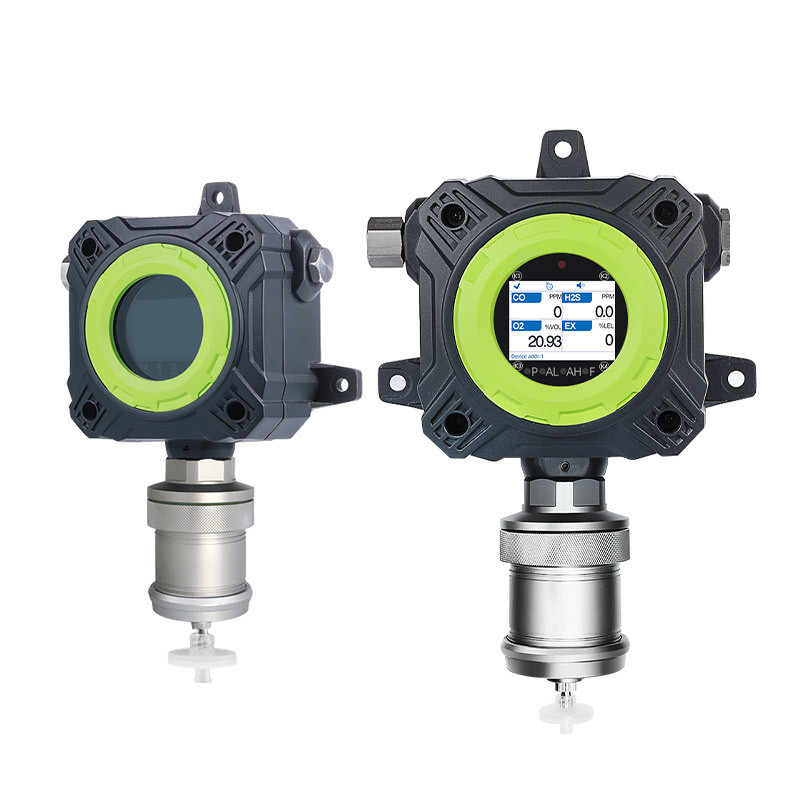

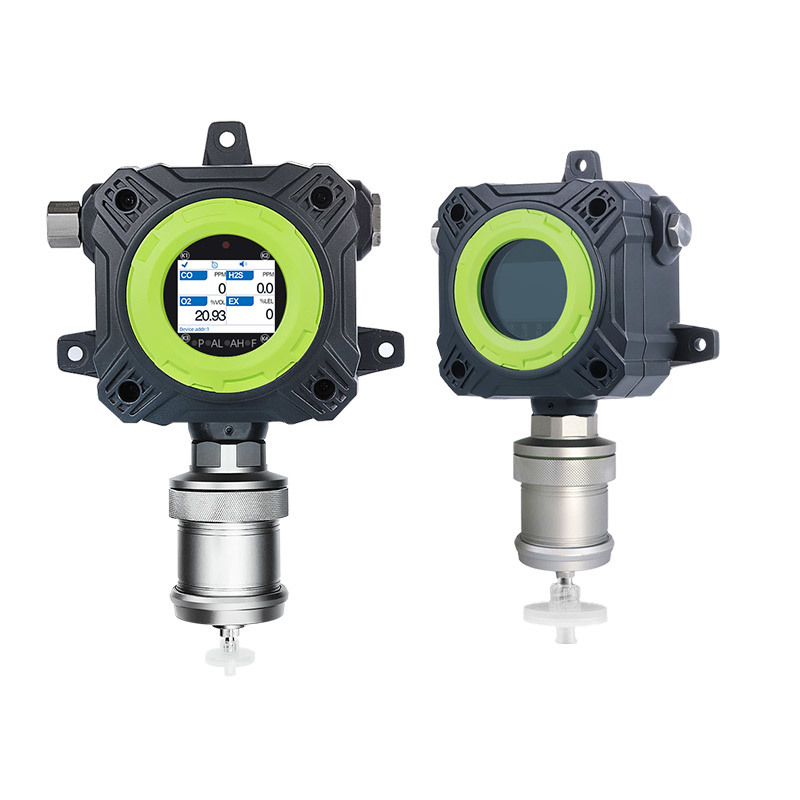

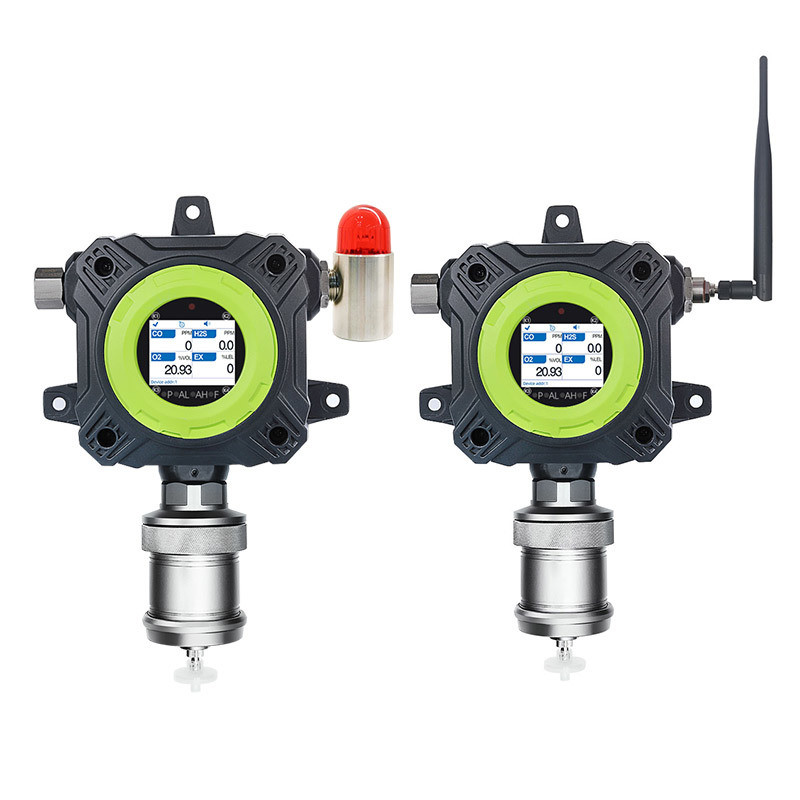

The YT-98H/YT-98H-A Fixed Gas Detector is a built-in pump-suction single & multi-gas detector designed for explosion-proof areas and the Oil & Gas industry. Featuring IECEx and ATEX certification with non-contact magnetic wand design, it offers versatile connectivity options including 3-wire 4 to 20-mA output with relays, HART, and Modbus protocols for compatibility with most control systems. Optional wireless functionality enables remote data viewing on laptops, mobile phones, or cloud systems.
| Specification | Details |
|---|---|
| Product Size | 286*202*96mm (H*W*D) |
| Product Weight | 3.4kg (3.8kg with alarm light) |
| Gas Type | CO/Carbon Monoxide |
| Sensor Type | Electrochemical principle |
| Measurement Range | 0-500/1000/2000 PPM |
| Resolution | 1 PPM |
| Precision | ≤±5% F.S |
| Pump Flow | 0.6(±0.1) L/Min |
| Display | 2.4-inch high-definition color display |
| Alarm System | Buzzer with alarm status prompt on display |
| Relay | Contact load 2A/30VDC |
| Power Supply | 12~24V DC |
| Installation | Wall-mounted |
| Operating Time | 24 hours uninterrupted monitoring |
| Languages | Chinese and English |
| Expansion | PC software compatible |
| Humidity Range | 0~95%RH (non-condensing) |
| Temperature Range | -10ºC~+55ºC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
Safegas is a 16-year veteran in environmental monitoring equipment design, production, and sales. With gas detectors as our core product, we provide complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
Our management philosophy centers on "Market is orientation. Innovation is motivation. Quality to survival. Development to growth." Through friendly, open corporate culture and standardized management, we've built talented teams that deeply understand customer-oriented service, earning trust and support worldwide.
Leveraging years of measurement experience and continuous R&D, Safegas products compete with international brands while meeting diverse customer demands through constant development and progress.
