| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | Safegas |
| 인증: | ATEX IECEX |
| 모델 번호: | SG100 |
| 최소 주문 수량: | 1 |
| 가격: | 430USD |
| 포장 세부 사항: | 판지 상자 |
| 배달 시간: | 3~10일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 1000 PC/일 |
| 가스 감지: | NOx | 측정 범위: | 0-100ppm |
|---|---|---|---|
| 해결: | 0.1ppm | 보호등급: | IP66IP68 |
| 폭발 방지 인증: | IECEX, ATEX, CE | 무선 (선택 사항): | LORA 또는 4G를 지원하십시오 |
| 통신 모드: | 4-20MA 、 rs485 1 ～ 5V, 선택적 HART | 작동 온도: | –20 ℃～ 50 ℃～ |
| 계전기: | 낮음/높음/오류 경보 릴레이를 포함한 3개의 릴레이(옵션) | 크기: | 157.8x128.8x69.6mm |
| 무게: | 1.0Kg |
The SG100 Fixed Gas Detector provides reliable continuous monitoring of NOX and industrial environments with advanced alarm functionality. The SG100 series represents a cost-effective solution for continuous monitoring of toxic gases, oxygen, flammable substances, and VOC gases. IECEx and ATEX certified with intrinsically safe explosion grade, this detector features 2-wire or 3-wire 4-20mA analog output, RS485 modbus output, and optional HART output for compatibility with most control systems. Optional wireless data transmission enables remote data review and download. Supports both magnetic and remote control for flexible configuration. Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances. Our products hold IECEx and ATEX explosion-proof certifications, making them suitable for hazardous areas including mines, underground facilities, and oil plants. We are the first and currently the only manufacturer in China to obtain these certifications. We utilize imported core components from leading brands, ensuring detection accuracy, product stability, and extended service life to protect customer safety. Our efficient supply chain ensures rapid delivery: 3 days for orders under 10 units and 15 days for orders exceeding 100 units under normal circumstances.
NOX Gas Detector with Electrochemical Sensor 4-20mA RS485 Output for Emission Monitoring
Fixed Nitrogen Oxides Gas Detector with IECEx ATEX Certified
Technical Specifications
Parameter
Specification
Detected Gas
NOX
Measurement Range
0-100PPM
Installation Method
Wall-mounted, piping type, flow-type
Output Signal
4-20mA, 1-5V, 2-10V, RS485, RS232, relays (optional)
Precision
≤±1%F.S. (to be specialized)
Zero Shift
≤±1%(F.S./year)
Display
4 digits Nixie tube display
Connection Mode
G3/4 external thread explosion-proof flexible pipe
Thread Size
Standard M20*1.5, 3/4NPT
Temperature Range
-20℃～50℃
Humidity Range
10-95%RH (non-condensing)
Explosion-Proof Rating
Ex db ⅡC T6/ Ex db ia IIC T6 Gb/ Ex da db ia IIC T6 Gb
Protection Degree
IP66/IP68
Material
Sensor housing: aluminum alloy or 316 stainless steel
Power Supply
12-24V DC
Dimensions
158*129*70mm
Weight
≤1kg
Certifications
CE, CNEX explosion proof certificate, CMC, IECEx, ATEX
Warranty
12 months
Product Gallery

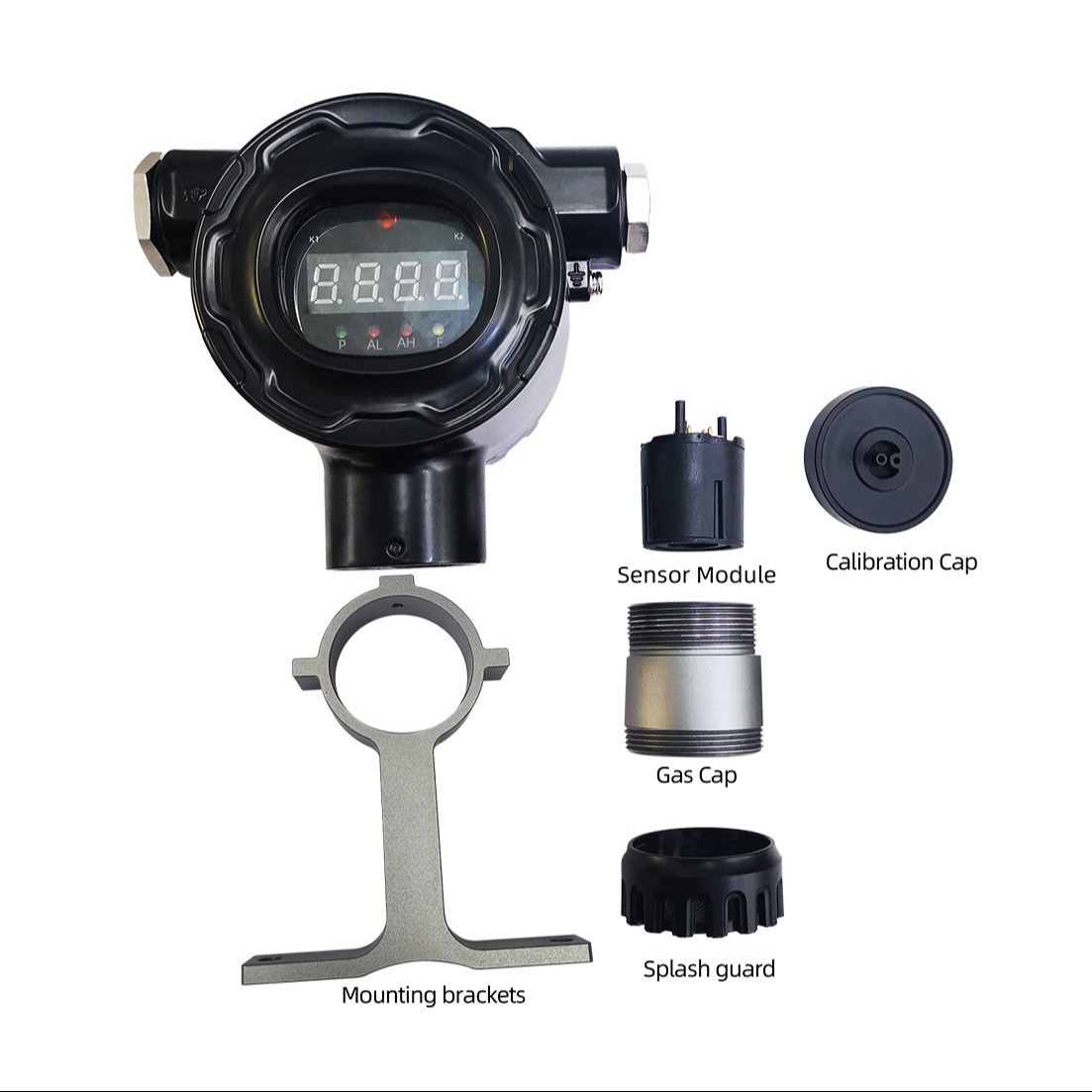

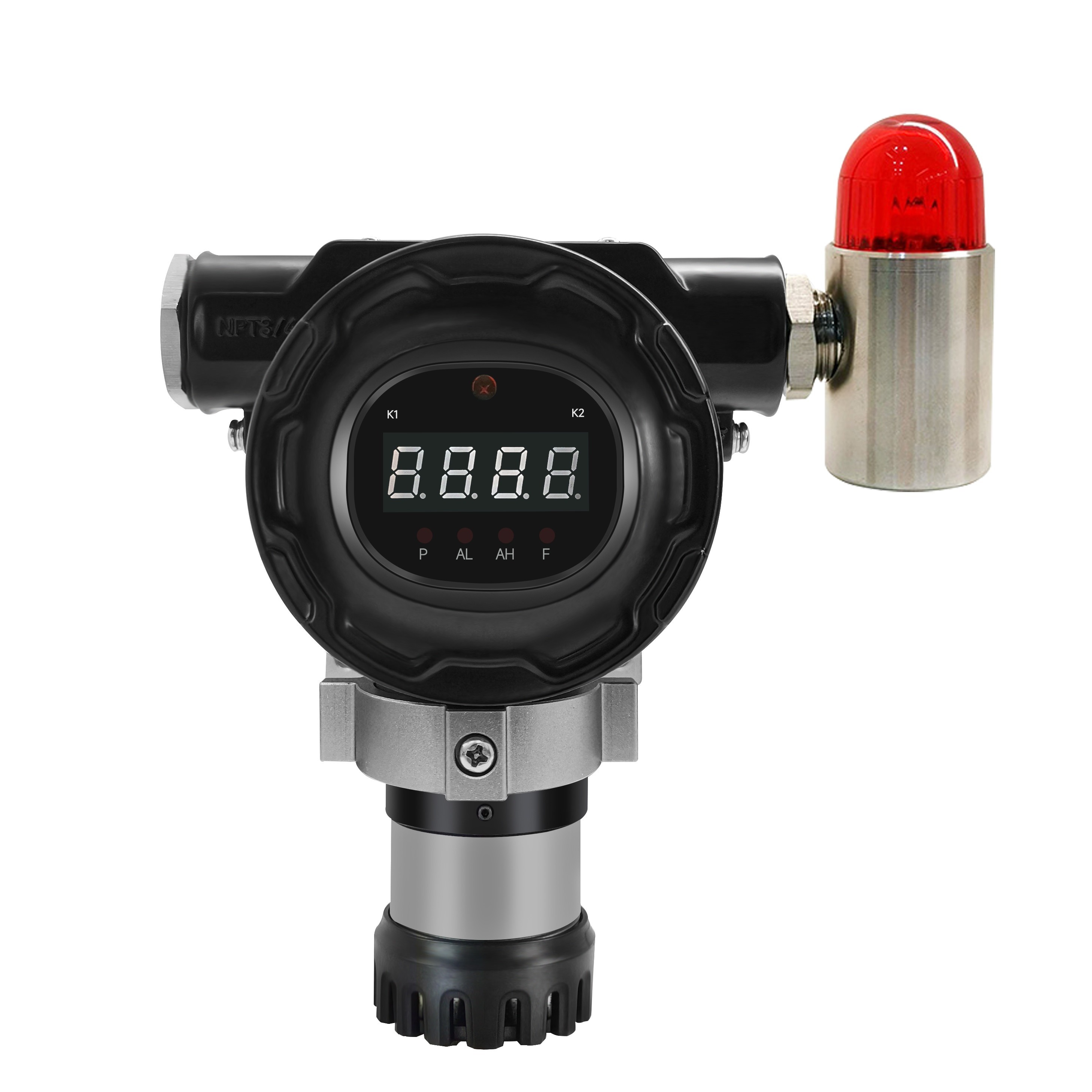

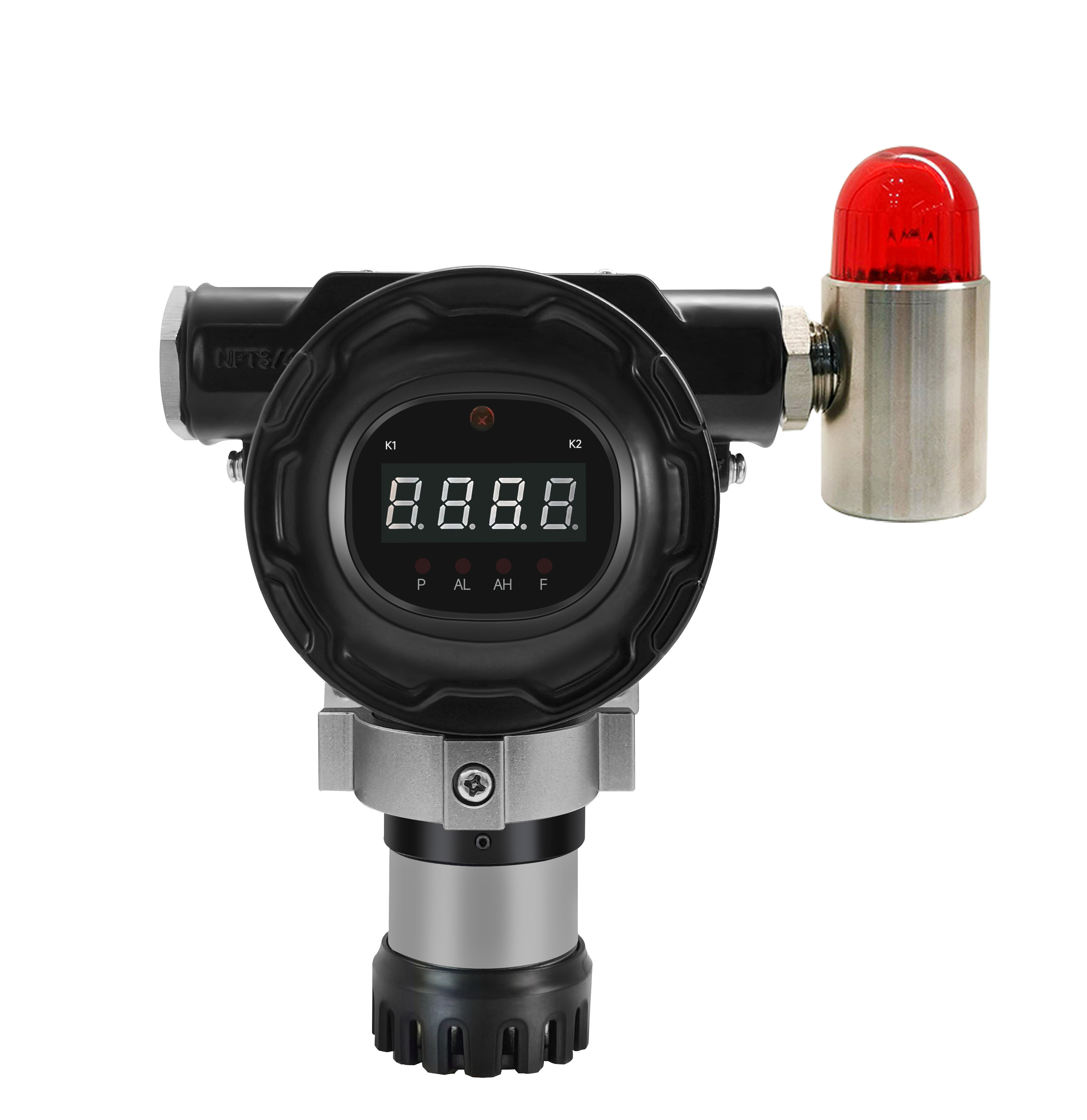

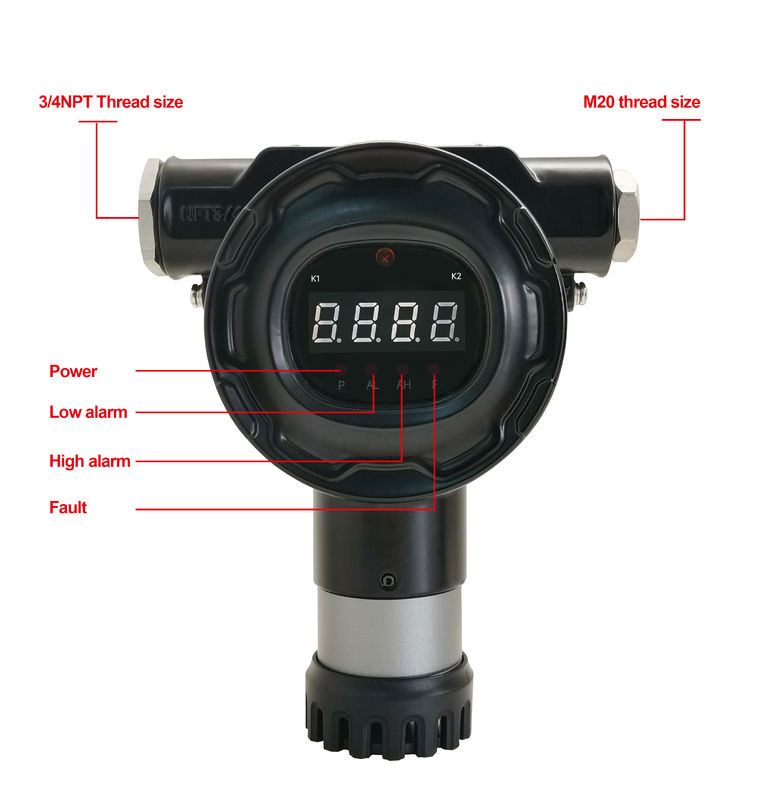

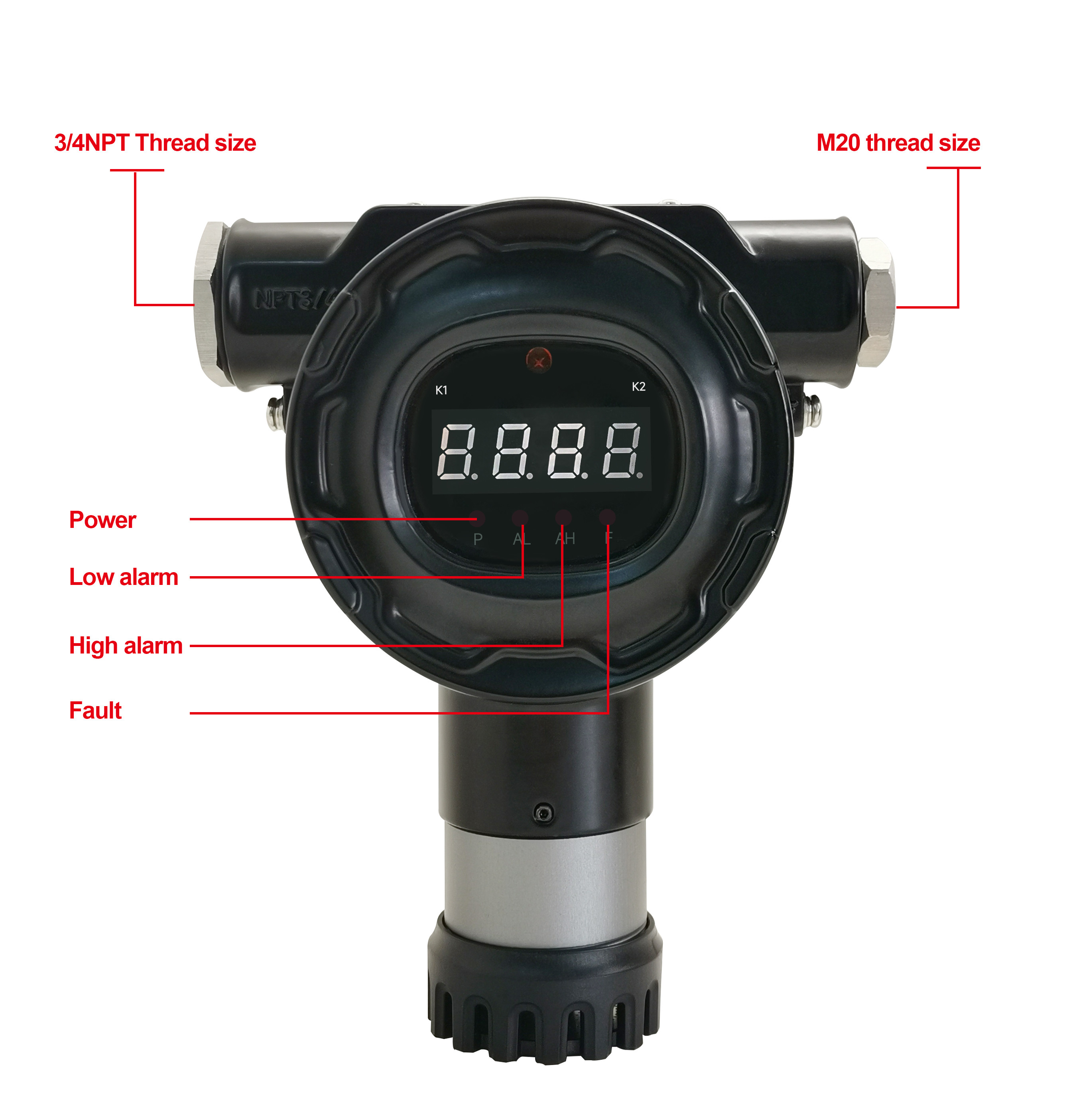

SG100 Fixed Gas Detector Overview
Key Product Advantages
Manufacturer Profile
As a professional gas detector manufacturer, we maintain complete control over the entire process from design and R&D to production and sales, ensuring consistent product quality. Our achievements include:
