| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | Safegas |
| 인증: | ATEX IECEX |
| 모델 번호: | SG100 |
| 최소 주문 수량: | 1 |
| 가격: | 220USD |
| 포장 세부 사항: | 판지 상자 |
| 배달 시간: | 3~10일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 1000 PC/일 |
| 가스 감지: | EX | 측정 범위: | 0-100%LEL |
|---|---|---|---|
| 해결: | 1%lel | 보호등급: | IP66IP68 |
| 폭발 방지 인증: | IECEX, ATEX, CE | 무선 (선택 사항): | LORA 또는 4G를 지원하십시오 |
| 통신 모드: | 4-20MA 、 rs485 1 ～ 5V, 선택적 HART | 작동 온도: | –20 ℃～ 50 ℃～ |
| 계전기: | 낮음/높음/오류 경보 릴레이를 포함한 3개의 릴레이(옵션) | 크기: | 157.8x128.8x69.6mm |
| 무게: | 1.0Kg |

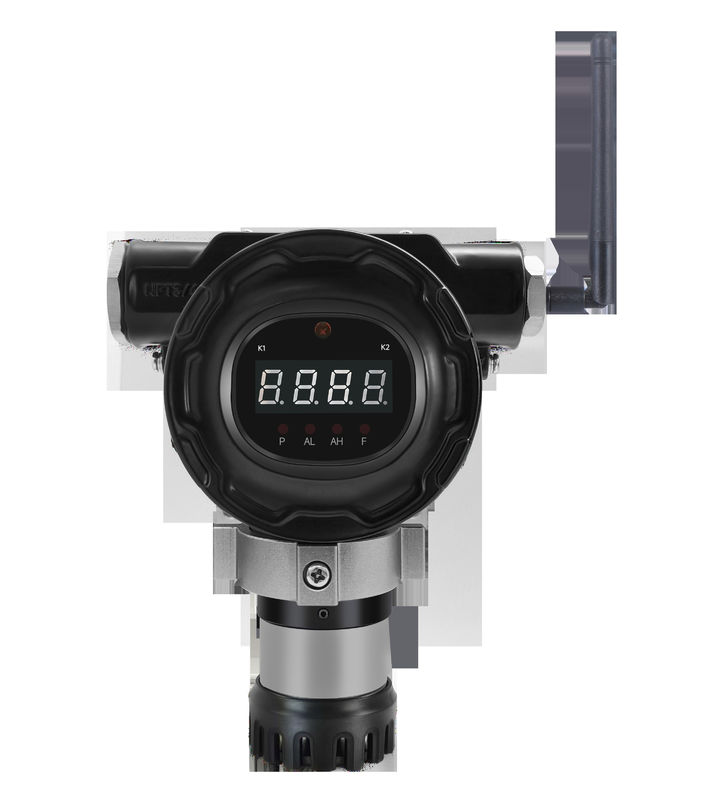

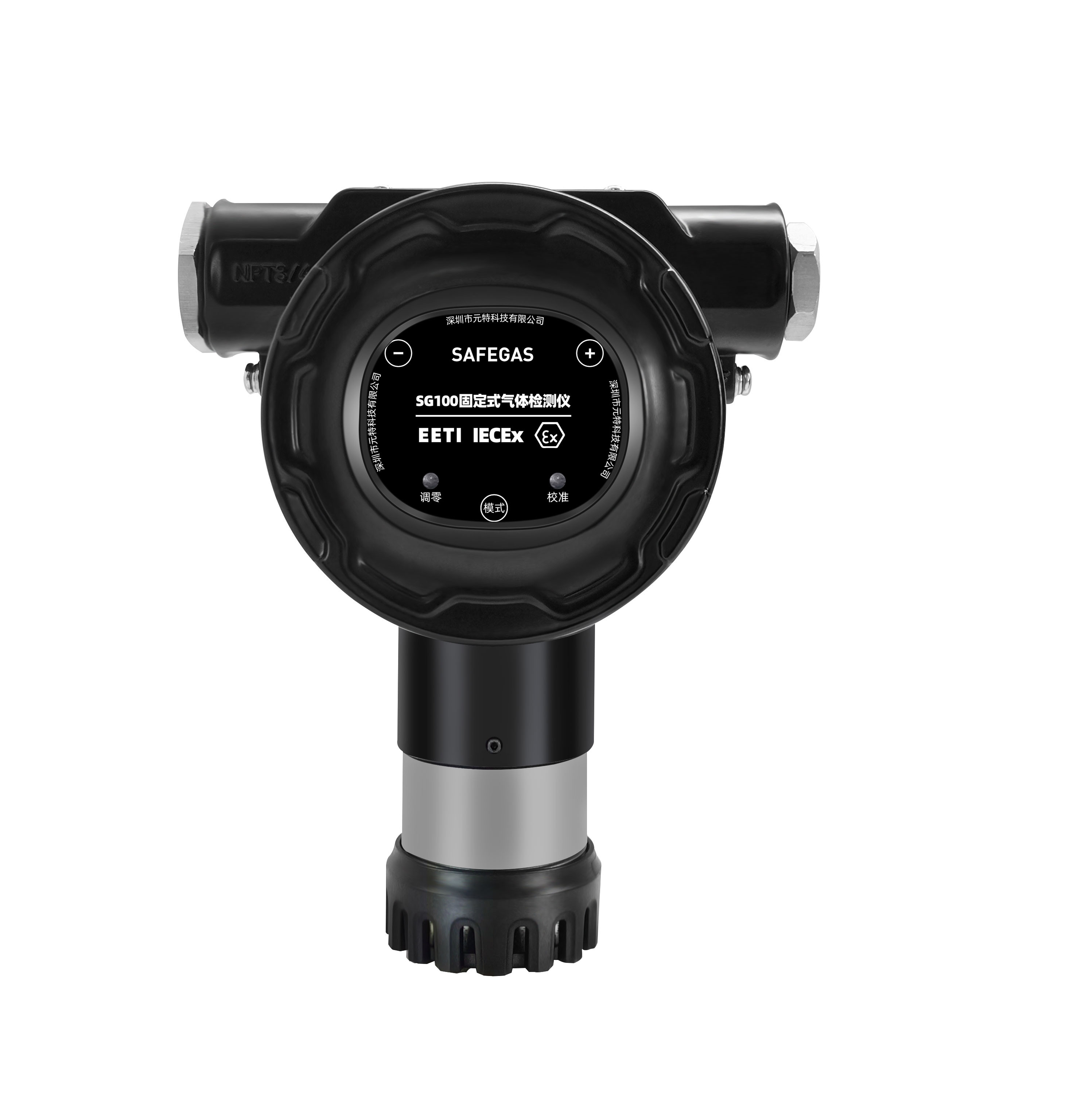

The SG100 Fixed Gas Detector provides reliable continuous monitoring of EX and industrial environments with advanced alarm functionality. This cost-effective solution monitors toxic gases, oxygen, flammable substances, and VOC gases with IECEx and ATEX certified intrinsically safe explosion grade.
| Parameter | Specification |
|---|---|
| Detected Gas | EX |
| Measurement Range | 0-100%LEL |
| Installation Method | Wall-mounted, piping type, flow-type |
| Output Signal | 4-20mA, 1-5V, 2-10V, RS485, RS232, relays (optional) |
| Precision | ≤±1%F.S. (to be specialized) |
| Zero Shift | ≤±1%(F.S./year) |
| Display | 4 digits Nixie tube display |
| Connection Mode | G3/4 external thread explosion-proof flexible pipe |
| Thread Size | Standard M20*1.5, 3/4NPT |
| Temperature Range | -20℃～50℃ |
| Humidity Range | 10-95%RH (non-condensing) |
| Explosion-Proof Rating | Ex db ⅡC T6/ Ex db ia IIC T6 Gb/ Ex da db ia IIC T6 Gb |
| Protection Degree | IP66/IP68 |
| Material | Sensor housing: aluminum alloy or 316 stainless steel |
| Power Supply | 12-24V DC |
| Dimensions | 158×129×70mm |
| Weight | ≤1kg |
| Certifications | CE, CNEX explosion proof certificate, CMC, IECEx, ATEX |
| Warranty | 12 months |
IP66/IP68 water and dust resistant with standard splash guard for outdoor installation
Intelligent plug-and-play sensor module with PC software calibration support
Lightweight (1kg) with standard mounting bracket for easy installation
Standard 4-20mA analog and RS485 modbus with optional Hart output
Three relays for low/high/fault alarm configuration
Magnetic and remote control options for flexible setting
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
As a professional gas detector manufacturer, we maintain complete control over the entire process from design and R&D to production and sales, ensuring consistent product quality.
Our products hold IECEx and ATEX explosion-proof certifications, making them suitable for hazardous areas including mines, underground facilities, and oil plants. We are the first and currently the only manufacturer in China to obtain these certifications.
We utilize imported core components from leading brands, ensuring detection accuracy, product stability, and extended service life to protect customer safety.
Our efficient supply chain ensures rapid delivery: 3 days for orders under 10 units and 15 days for orders exceeding 100 units under normal circumstances.
