| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | Safegas |
| 인증: | IECEx/ATEX/EMC |
| 모델 번호: | SKY-3000 |
| 최소 주문 수량: | 1 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 판지 상자 |
| 배달 시간: | 영업일 기준 3일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 100개 조각/일 |
| 가스 감지: | VOC(휘발성 유기 화합물) - PID 센서 | 측정 범위: | 0 - 1000 ppm |
|---|---|---|---|
| 해결: | 1 ppm | 응답 시간 (T90): | ≤30 초 |
| 샘플링 방법: | 펌프+확산 듀얼 모드(자동 전환) | 펌프 런타임: | >15시간 연속 펌핑 |
| 표시하다: | LCD 160×96, 180° 회전 가능, 백라이트 포함 | 배터리: | 3.7V 충전식 리튬, 2200mAh |
Professional-grade portable gas detector designed for volatile organic compound (VOC) monitoring with PID technology. Features dual sampling modes and advanced display capabilities for industrial safety applications.
A rugged, IECEx/ATEX certified portable gas detector with built-in pump for VOC monitoring. Measures 0–1000ppm with 1ppm resolution using a PID sensor. Features pump + diffusion dual mode, IP67 waterproof/dustproof, 3 meter drop resistance, man down alarm, 100,000 data logs (export via USB), and triple alarm (95dB buzzer + flashing red LED + vibration). Optional wireless (LoRa/Bluetooth) and docking station (DKS-3000) for automated testing. Ideal for industrial hygiene, leak detection, and confined space entry.

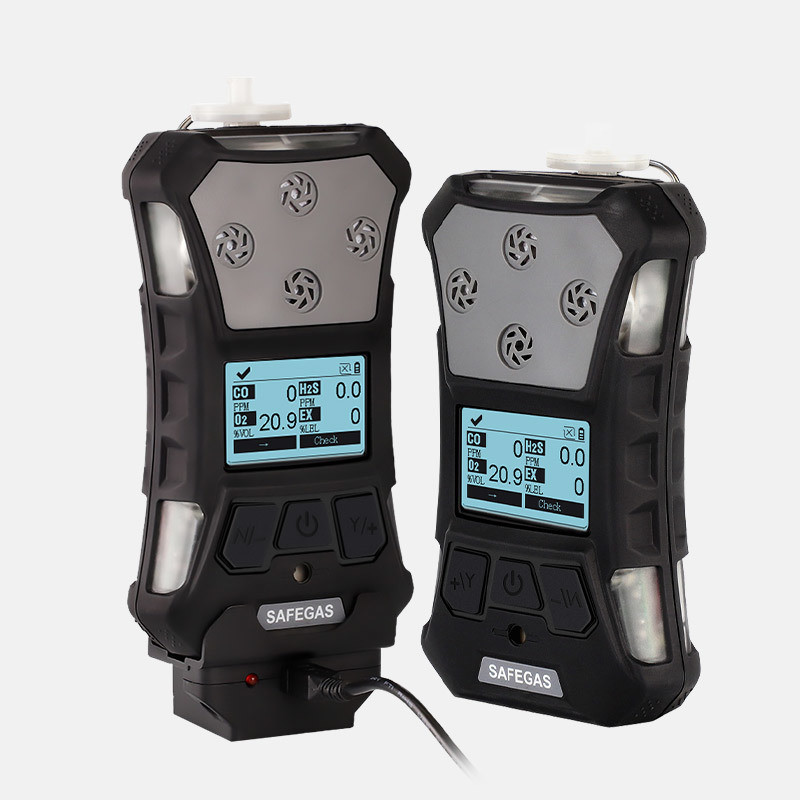

The SKY3000 is a high performance portable gas detector certified to IECEx, ATEX, and EMC standards. It uses a built in pump for active sampling but can automatically switch to diffusion mode in case of pump failure or special emergency, providing an extra layer of safety. The detector measures up to 6 gases simultaneously (standard 4 in 1: CO/H₂S/O₂/LEL, with VOC as an option).
Taking VOC (Volatile Organic Compounds) as an example, the SKY3000 employs a PID (Photoionization Detector) sensor to measure concentrations from 0–1000ppm with a resolution of 1ppm. Response time (T90) is ≤30 seconds, and precision ≤ ±2% FS.

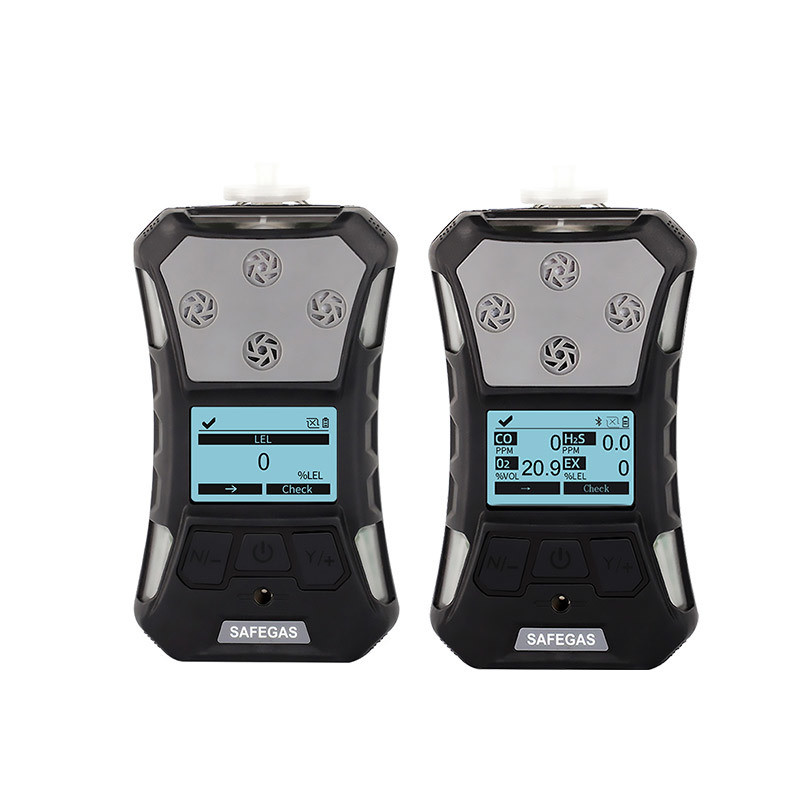

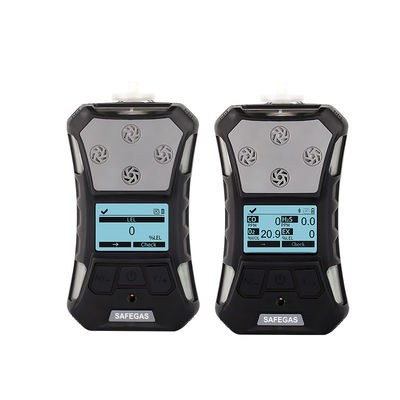

The large graphical LCD (160×96) can be rotated 180° for easy reading in any orientation. Backlight turns on automatically during alarms.
Data logging is standard: 100,000 records with adjustable interval (5–3600 seconds). Data can be exported to a PC via USB without any software – the detector appears as a removable drive.
The detector includes a standard water trap filter to protect the pump and sensor from moisture and dust. A man down alarm enhances lone worker safety. Optional LoRa or Bluetooth wireless modules enable remote real time monitoring, and the DKS 3000 docking station automates bump testing, calibration, and data management.
Powered by a 2200mAh rechargeable lithium battery, the SKY3000 runs for >15 hours in continuous pumping mode (charging time ≥4 hours). With IP67 protection and 3 meter drop resistance, it is built for the harshest job sites.
VOC stands for Volatile Organic Compounds – hundreds of chemicals that evaporate at room temperature (e.g., benzene, toluene, xylene, formaldehyde, gasoline vapors). Sources include paints, solvents, fuels, adhesives, and industrial emissions. Short term exposure can cause eye/nose/throat irritation, headaches, and nausea; long term exposure may lead to liver/kidney damage or cancer. PID sensors detect a wide range of VOCs with high sensitivity, making them ideal for leak detection, confined space entry, and industrial hygiene monitoring.
| Parameter | Value |
|---|---|
| Gas Detected | VOC (Volatile Organic Compounds) – PID sensor |
| Measuring Range | 0 – 1000 ppm |
| Resolution | 1 ppm |
| Response Time (T90) | ≤30 seconds |
| Precision | ≤ ±2% FS |
| Sampling Method | Pump + diffusion dual mode (auto switch) |
| Pump Runtime | >15 hours in continuous pumping |
| Display | LCD 160×96, 180° rotatable, with backlight |
| Data Logging | 100,000 records (5–3600 sec interval); export to PC via USB – no software needed |
| Alarm | 95dB@30cm buzzer, flashing red LED, vibration; man down alarm, pump failure alarm, low battery alarm |
| Battery | 3.7V rechargeable lithium, 2200mAh |
| Charging | Travel charger (DC); ≥4 hours |
| Explosion Proof | IECEx: Ex ia IIC T4 Ga; ATEX: II 1G Ex ia IIC T4 Ga |
| Protection Grade | IP67 (dust tight, waterproof to 1m immersion) |
| Drop Resistance | 3 meters |
| Operating Temperature | -20°C to +50°C |
| Operating Humidity | 10–90% RH (non condensing) |
| Pressure Range | 86–106 kPa |
| Dimensions | 157 × 84.5 × 59.5 mm (incl. back clip & filter) |
| Weight | 365 g (incl. battery, clip, filter) |
| Feature | Description |
|---|---|
| Compatibility | SKY3000 (4 in 1: CO/H₂S/O₂/LEL) |
| Functions | Bump test, calibration, configuration, data recording |
| Capacity | 1 unit at a time |
| Portable | Battery powered – up to 3000 bump tests per charge |
| Data storage | Built in 32G SD card (>100,000 records) |
| Data export | USB port for U disk (bump logs, calibration reports, configs) |
| PC software | Safegas software for configuration and analysis |
| Indicators | 5 red/green LEDs |
| Buttons | Bump, Cali, Power |
| Size/Weight | 329×312×123 mm, 4.2 kg |
Shenzhen YuanTe Technology Co., Ltd. (brand: Safegas) was established in 2010 and specializes in the R&D, manufacturing, and sales of gas detection equipment and integrated systems. With over 16 years of industry expertise, the company serves sectors including oil & gas, chemicals, environmental protection, electronics, municipal engineering, agriculture, and household appliances. All products are manufactured under ISO9001 and ISO45001 management systems, holding international certifications such as IECEx, ATEX, and EMC. With an annual production capacity of over 80,000 units, YuanTe Technology supplies gas detection solutions to customers worldwide.
1. How often should I bump test the SKY3000?
Daily before use, especially if used in high risk environments.
2. What is the lifespan of the PID sensor?
Typically 12–24 months depending on usage and contamination. The lamp can be cleaned periodically.
3. Can I calibrate the detector myself?
Yes. Use a known concentration of calibration gas and follow the manual’s zero/span calibration steps. The optional DKS 3000 automates the process.
4. How do I export data without the docking station?
Connect via USB to a PC – the detector appears as a USB drive. Copy the CSV log files directly.
5. What happens if the pump fails?
The detector automatically switches to diffusion mode and triggers a pump failure alarm. You can still get gas readings, but response time will be slower.
6. Is the SKY3000 suitable for use in explosive atmospheres?
Yes. It has Ex ia IIC T4 Ga certification for Zone 0, 1, 2 hazardous areas.
7. How long does the battery last with pump running continuously?
Over 15 hours on a full charge. With the pump off (diffusion mode), runtime is longer.
8. Can I detect other gases besides VOC with the same unit?
Yes. The SKY3000 can be configured for up to 6 gas types, including CO, H₂S, O₂, LEL, NH₃, Cl₂, NO₂, SO₂, etc. Contact us for custom configurations.
9. Does the detector come with a water trap filter?
Yes, a standard water trap filter is included to protect the pump and sensor from moisture and dust.
10. What is the warranty period?
1 year for the detector; sensors have shorter warranty depending on the type (consult datasheet).
