| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | SAFEGAS |
| 인증: | CNEX CE ISO9001, ISO14001, ISO45001 |
| 모델 번호: | YT-95H |
| 최소 주문 수량: | 1 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 판지 상자 |
| 배달 시간: | 3 일 |
| 지불 조건: | T/T, 서부 동맹 |
| 공급 능력: | 달 당 1000개 조각 |
| 가스 감지: | TVOC | 범위: | 0-100ppm |
|---|---|---|---|
| 레솔루션: | 0.1ppm | 센서 유형: | 전기 화학 |
| HS 코드: | 9027100090 | 치수: | 180mm×150mm×90mm |
| 무게: | 1.6kg 이하 | 방폭등급: | 전 Ｄ IIC T6 Gb |
| 표시하다: | LCD | 반복성: | ≤ ± 1% |
| 제로시프트（FS/년）: | ≤ ± 1% |

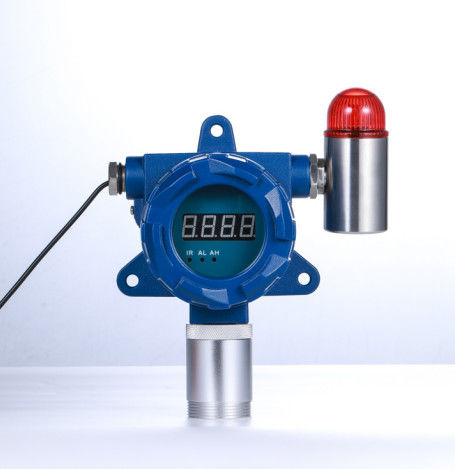

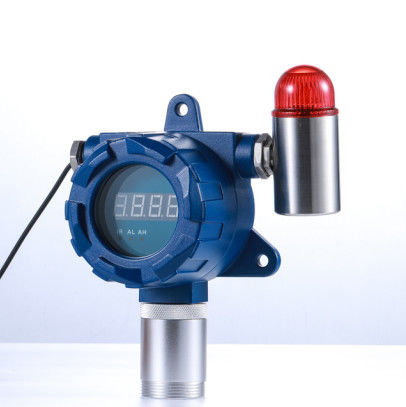

High-precision Fixed TVOC Gas Detector with diffusion detection principle, designed for industrial safety applications.
YT-95H/YT-95H-A series is a cost-effective explosion-proof transmitter for the detection of flammable gases and toxic gases. A 3-wire 4 to 20 mA analog output with relays and RS485 Modbus protocol makes it compatible with most control systems. Third-party products such as horns, warning lights and fans are compatible with our components and integrated by us into the system. With optional wireless function, operators can view data on laptop, mobile phone or cloud system remotely.
| Parameter | Details |
|---|---|
| Gas Detected | TVOC |
| Detection Principle | Electrochemical |
| Measure Range | Specified according to application |
| Resolution | Specified according to application |
| Accuracy | ≤±2-5%FS (depending on the specific sensor) |
| Response Time (T90) | 15-30s (depending on the specific sensor) |
| Repeatability | ≤±1% |
| Zero Shift | ≤±1% (F.S./year) |
| Display | 4 digits Nixie tube display |
| Connection Mode | G1/2 external thread explosion-proof flexible pipe |
| Thread Size | M45×2mm |
| Temperature | -20℃ ~ 50℃ |
| Humidity | 0-95%RH (no condensation) |
| Material Case | Die-cast aluminum, Sensor housing: aluminum alloy or 316 stainless steel |
| Power | 12-36V DC |
| Dimensions | 180×150×90mm |
| Weight | ≤1.6kg |
| Explosion-proof Grade | Ex d IIC T6 Gb |
