| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | SAFEGAS |
| 인증: | ATEX/EMC/IECEX |
| 모델 번호: | Sky3000 |
| 최소 주문 수량: | 1 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 알루미늄 가방 |
| 배달 시간: | 3 일 |
| 지불 조건: | T/T, 서부 동맹 |
| 공급 능력: | 달 당 1000개 조각 |
| 가스: | 콜로라도 | 측정 범위: | 0-1000ppm |
|---|---|---|---|
| 해결: | 1ppm | 센서 유형: | 전기 화학 |
| 샘플링 방법: | 펌프 흡입 | 인증: | CE,ATEX,IECEx,ISO |
| 언어: | 중국어/영어/러시아어/맞춤형 | 알람 모드: | 부저, LED 및 진동 |
| 힘: | 3.7V 충전식 리튬 배터리 | 근무 시간: | 15시간 이상(펌프 가동시) |
| 데이터 레코드: | 10 만 세트 데이터를 저장할 수 있습니다 | 단일 패키지 크기:: | 34cm*24cm*14cm |
| 단일 총 중량 :: | 1.64kg | 보호 등급: | IP67 |

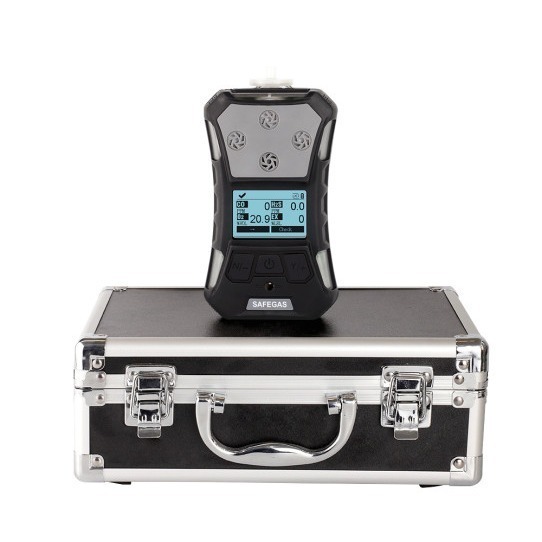

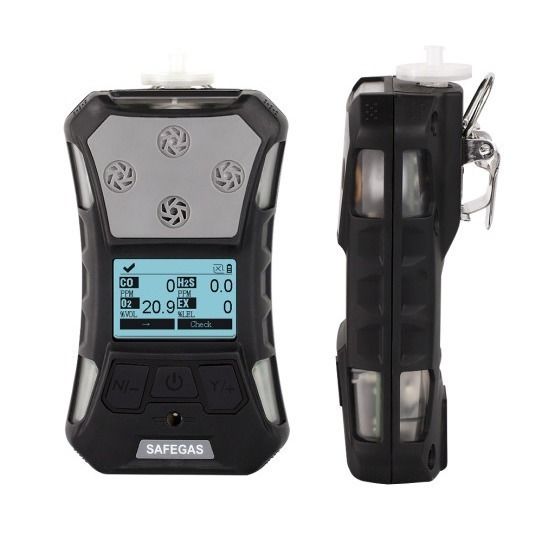

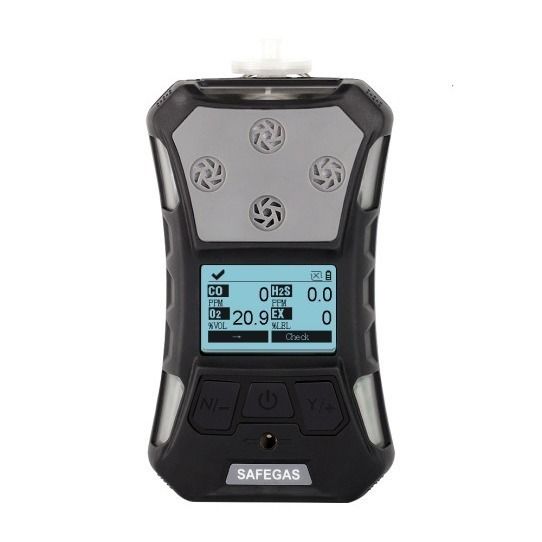

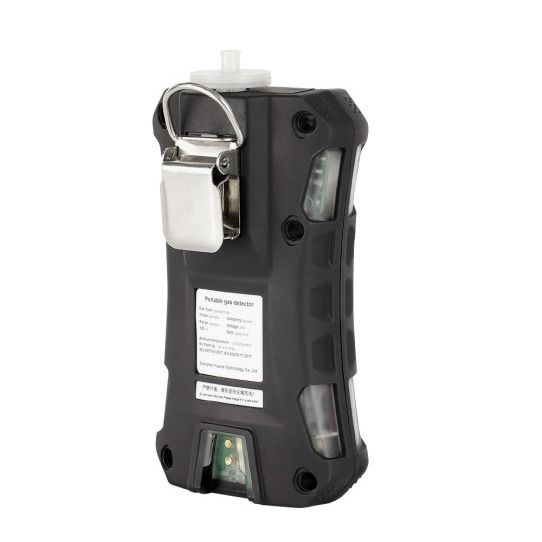

SKY3000 Portable Gas Detector - A high-performance portable gas detector capable of detecting multiple gases simultaneously with man down alarm function. Features international IECEX and ATEX explosion-proof certification with IP67 protection rating.
| Parameter | Specification |
|---|---|
| Sampling method | Pump suction |
| Gas type | Specified according to application |
| Measure range | Specified according to application |
| Resolution | Specified according to application |
| Response time | ≤10 seconds |
| Precision | ≤±1% F.S |
| Language | English (Other languages customizable) |
| Automatic functions | Reset, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ switchable |
| Display | Monochrome graphics (160 x 96), automatic screen flip |
| Backlight | Manually settable time, automatic on during alarm |
| Data record | 100,000 data sets, adjustable storage interval 5-3600 seconds, data exportable |
| Alarm | 95dB buzzer, vibration, flashing red LED, screen indication, diagnostic alarm, battery undervoltage, pump block, man down alarm with Bluetooth notification |
| Battery | 3.7V rechargeable lithium battery, 2200mA capacity |
| Working hours | More than 15 hours continuous pumping |
| Charger | Travel charger with DC interface, ≥4 hours charging time |
| Explosion-proof grade | IECEX/ATEX (II IG Ex ia IIC T4), CNEX: Ex ia IIC T4 Ga |
| Certification (EU) | 2004/108/EC (EMC), 1995/5/EC (Radio), 94/9/EC (ATEX) |
| Protection grade | IP67/IP68 |
| Working temperature | -20ºC to +50ºC |
| Humidity | 0-90% RH (no condensation) |
| Environmental pressure | 86-106 Kpa |
| Size | 157 × 84.5 × 59.5mm (including accessories) |
| Weight | 365g (including battery and accessories) |
| Bluetooth function (Optional) | Real-time data transmission to mobile phone or PC |
This device is widely used in various industrial fields:
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) is a company that focuses on the design, production and sales of gas detection equipment and systems for 16 years. With "gas detector" as the core product, we have complete production lines and solutions for different industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, and Household Appliances.
Our products include portable types, fixed types and controller panels:
Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality comparable to international brands with competitive pricing.
We have successfully cooperated with major international companies including Huawei, Coca-Cola, Samsung, Nestlé and more.
