| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | SAFEGAS |
| 인증: | ATEX/EMC/IECEX |
| 모델 번호: | 미세 타 |
| 최소 주문 수량: | 1 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 상자 (22*16*11cm) |
| 배달 시간: | 3 일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 달 당 3000 조각 |
| 무선 전송: | 블루투스 전송 기능 (선택) 로라 전송 기능 (선택) | 레솔루션: | 1%LEL 1PPM 0.1PPM 0.1%VOL |
|---|---|---|---|
| 근무시간: | 대기 시간 24시간, 충전 시간 <6시간 | 배터리: | 3.7V 충전식 리튬 배터리, 배터리 용량 2300mA |
| 전원을 켠 후 자동으로 테스트 및 교정: | 자동 테스트, 교정, 자동 영점, 최대값(MAX), 최소값(MIN), STEL, TWA 값 포함 | 교정 플랫폼: | DKM-MicMeta 도킹 스테이션(옵션)에서 수정, 기능 테스트 및 교정 작업을 수행할 수 있습니다. |
| 인증(EU 규정): | 2004/34/UE(ATEX) | 응답 시간 (T90): | ≤30s |
| 데이터 레코드: | 1000 세트 데이터 기록 및 100 세트 이벤트 기록 | 작업 방법: | 확산 |
| 무게: | 240g (리?? 배터리) | 보호 등급: | IP66/IP68 |
| 가스 감지: | SO2 | 범위: | 0~100ppm/0~500ppm/0~1000ppm |

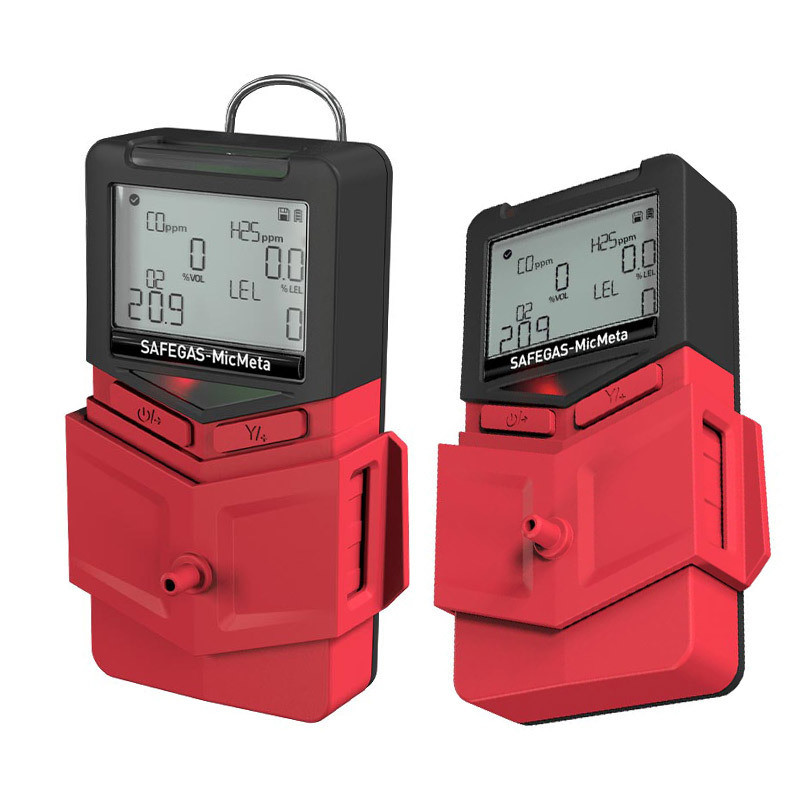

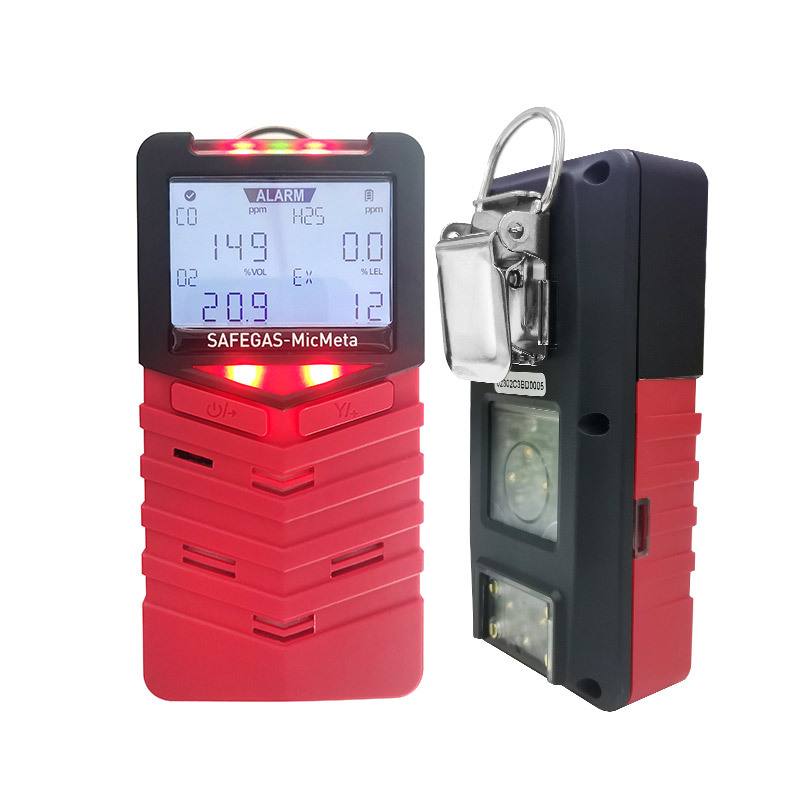

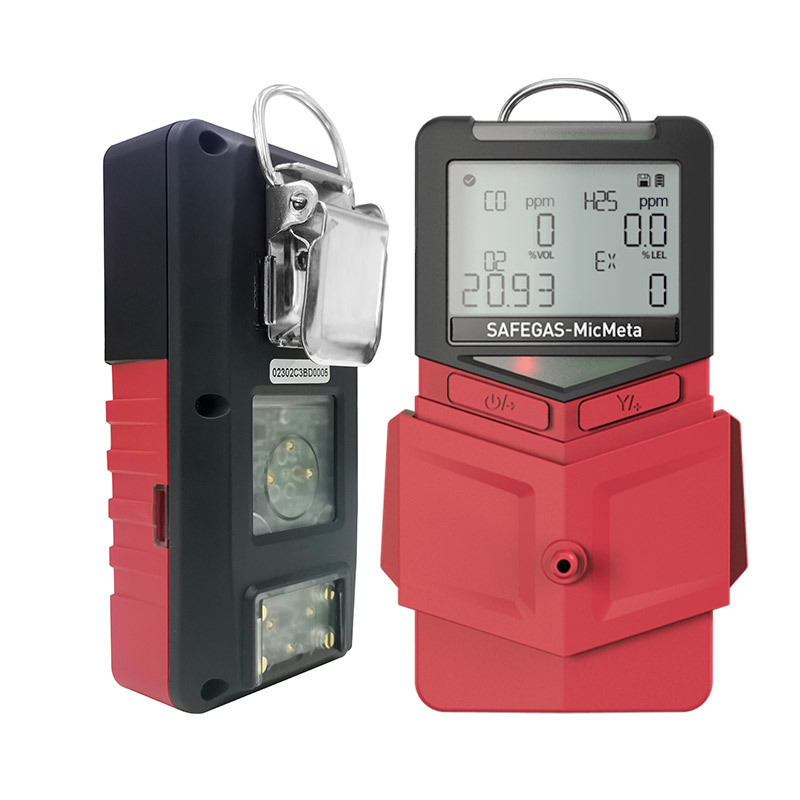

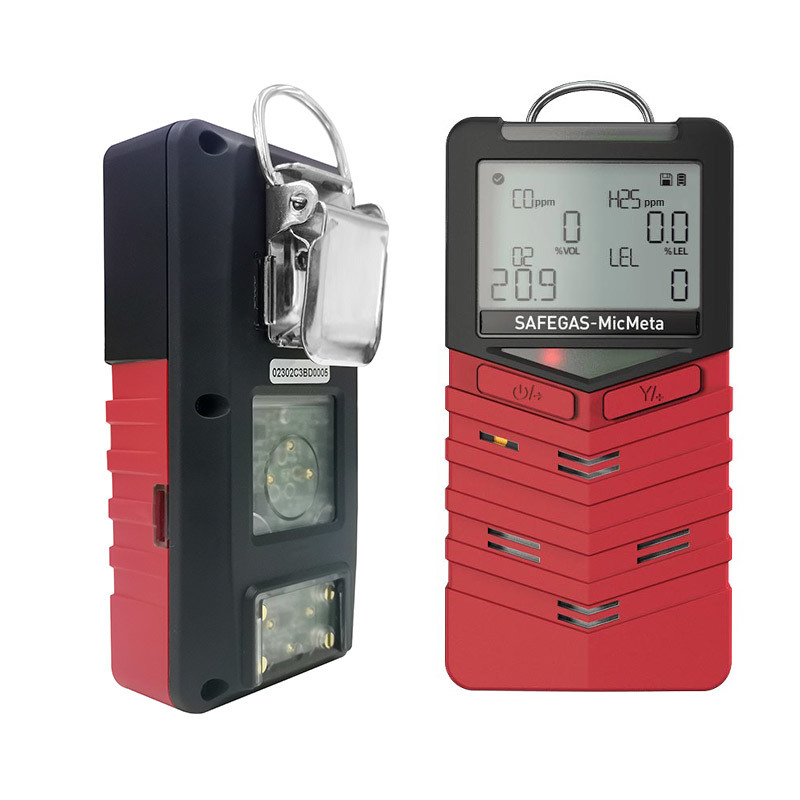

Portable multi model SO2 gas detector with bump test and calibration
MicMeta is a multi-gas detector that has been certified by IECEx, ATEX, and EMC. It's lightweight with small size. The standard gas type is multi 4 (CO H2S O2 LEL) gases and also supports hundreds of selectable gases. It includes standard mandown alarm and data logging function, with optional Lora and Bluetooth wireless data transmission for easy data access.
| Parameter | Specification |
|---|---|
| Sampling method | Diffusion |
| Gas type | SO2 |
| Measure range | 0-100ppm/0-500PPM/0-1000PPM |
| Resolution | 0.1ppm/1ppm |
| Response time | ≤60S (T90) |
| Precision | ≤±5%FS or ±10% (depends on the specific sensor) |
| Language | Chinese/English |
| Automatically test and calibrate after power-on | Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system |
| Display | Segment code LCD display |
| Calibration platform | Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional) |
| Data record | 1000 sets data records and 100 sets events records |
| Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red bars and alarm status indication on the screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable. |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2300mA |
| Working hours | Standby time 18h, charging time <6h |
| Wireless transmission | Bluetooth transmission function (optional), Lora transmission function (optional) |
| Explosion-proof grade | CNEX:Ex ia IIC T4 Ga |
| EU regulations | 2004/108/EC(EMC), 94/9/EC(ATEX), CE |
| Protection grade | IP66/IP68 |
| Working temperature | -20°C~55°C |
| Humidity | 0-95%RH (non-condensing) |
| Environmental pressure | 86~106Kpa |
| Size | 113*60*32mm (length * width * height) |
| Weight | 200g (with lithium battery) |
Safegas is a company that focuses on the design, production and sales of environmental monitoring equipment and system for 16 years. With "gas detector" as the core product, we have completed production lines and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 16 years of rapid development, Safegas becomes the influential supplier for environmental monitoring equipment and system in the domestic and overseas market.
For years, Safegas always insisted on the management concept "Market is orientation. Innovation is motivation. Quality to survival. Development to growth." With friendly, open, and strict corporate culture and standardized management, Safegas gathers a lot of talents and builds up the management team and R&D team. All the staff cooperates well in product development, production, and maintenance, and has a deep understanding of the concept of "customer-oriented", and runs the service spirit through the company operation and management, to win the trust and support from customers.
Depending on years of measurement experience and Safegas solutions, through independent research and development, cooperative development and learning overseas latest technology, Safegas's products are domestic advanced, and can compete with overseas brand. We are seeking for development and progress constantly, and trying to meet diversified demands from customers.
