IECEX Certified MiniMeta Detector for Toxic Gas Single Gas Detection

기본 정보

원래 장소:	중국
브랜드 이름:	SAFEGAS
인증:	IECEX/ATEX/EMC/CE
모델 번호:	미니 메타

최소 주문 수량:	1
가격:	협상 가능
포장 세부 사항:	판지 상자
배달 시간:	3 일
지불 조건:	t/t
공급 능력:	100 조각/일

최고의 가격 지금 연락

상세 정보

가스 감지:	애플리케이션에 따른 스페치피에드.	방법 범위 ::	애플리케이션에 따른 스페치피에드.
해결::	애플리케이션에 따른 스페치피에드.	원리 ::	전기화학적 원리
단위::	ppm, mg/m3, %vol	표시하다::	가스명, 농도단위, 측정값, 배터리 전원
경보 모드::	소리, 빛, 진동 알람, 높음/낮음 알람 값을 사용자가 직접 설정할 수 있습니다.	알람 유형 ::	저알람, 고알람, STEL, TWA, 배터리 부족 옵션 교정 기한 및 범프 테스트 기한
강조하다:	IP68 Water- and Dust-Resistant Single Gas Detector , 95db Buzzer Alarm Toxic Gas Detector , GB 12358-2006 Compliant MiniMeta Detector

제품 설명

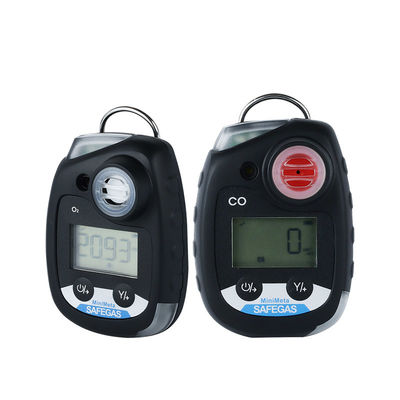

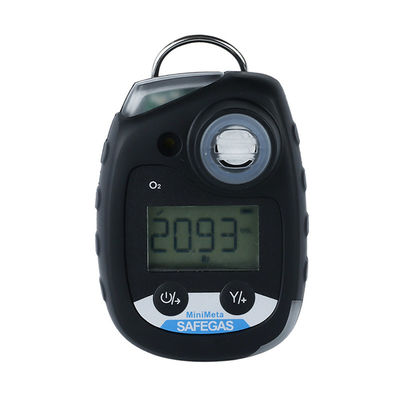

IECEX Certified MiniMeta Detector for Toxic Gas Single Gas Detection

Product Overview

MiniMeta is an IECEX/ATEX/EMC certified single-gas detector. It can detect hundreds of user-selected toxic gases, user friendly and easy for operation. The battery and sensor is replaceable to provide user a long-term protection. It is designed to offer a low long-term ownership cost of a gas monitoring system.

Product Advantages

IP68 water- and dust-resistant case
Low power consumption with 2 years standby time, no need battery charge and calibration
With Single /multi unit docking station to perform daily bump test and calibration (Optional)
With event and data logging function (optional)
With self-test function, which can improve safety by automatic self-test
Small size, light weight and with back clip for easily carry
95db@30cm buzzer alarm, 2 high-bright red LED light alarm and vibration alarm
Real time value, TWA, STEL, MAX, MIN multiple data display

Technical Parameters

Parameter	Specification
Gas Detected	Specified according to application
Detection Principle	Diffusion
Measure range	Specified according to application
Resolution	Specified according to application
Accuracy	≤±2-5%FS (depending on the specific sensor)
Response time(T90)	15-30s (depending on the specific sensor)
(Detection) Principle	Electrochemical principle
Unit	PPM, mg/m³, %VOL
Display	Gas name, concentration unit, measured value, battery power
Alarm mode	Sound, light, vibration alarm, high and low alarm values can be set by yourself
Alarm type	Low alarm, high alarm, STEL, TWA, low battery optional calibration due and bump test due
Power supply mode	3.6V dry battery (non-rechargeable)
Explosion-proof grade	ExiaIICT4Ga
Protection class	IP68
Executive standards	GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010, JJF1421-2013, JJF1363-2019, JJF1364-2012, JJG 365-2008, IEC 60079-0-2017, IEC 60079-11-2
Working temperature	-20℃~55℃
Working humidity	0-95%RH (non-condensing)
Working air pressure	86~106kpa
Dimensions	90×60×33mm (length×width×thickness)
Weight	125g (With Clip)
